Auto Light Control Function In/out

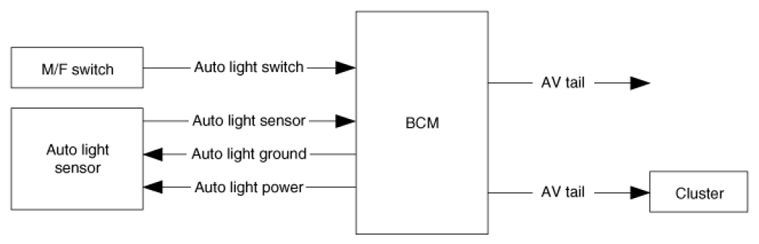

- Auto Light Control Function Block Diagram
Auto Light Control Function In/Out list
FUNCTION REFERENCE
| Function | Characteristics | Name | |
|---|---|---|---|
| Hardware Label | Spec. Designation | ||
| Input | Logic | L_AutolightSW | Auto Light Switch |
| Analog | A_AutoLightSnsr | Auto Light Sensor Level | |
| Output | Internal | b_TailAutoState | Tail Lamp On/Off Request by Auto Light Control Module |
| b_HeadAutoState | Head Lamp Low On/Off Request by Auto Light Control Module | ||
| Logic | V_AutoLightGND | Supplying Ground to Auto Light Module | |
| V_AutoLightPwr | Supplying Power to Auto Light Module | ||
| O_AVTail | AV Tail output | ||
| CAN Communication |
C_AV_Tail | Auto Light output to AV module | |
