Repair Procedures: Inspection

WARNING: This page is about a different car, the 2011 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the crash pad lower switch(A).

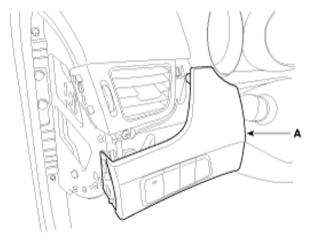

Fig 1: Identifying Crash Pad Lower Switch
Courtesy of HYUNDAI MOTOR CO.
Remove the rheostat switch connector(A).

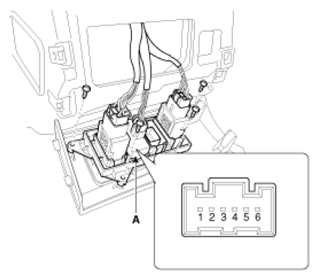

Fig 2: Identifying Rheostat Switch Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Operate the rheostat switch and check for continuity between terminals.

Fig 3: Rheostat Switch Connector - Continuity Chart
Courtesy of HYUNDAI MOTOR CO.
