Repair Procedures: Removal

WARNING: This page is about a different car, the 2011 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Loosen 2 screws holding the overhead console (A).

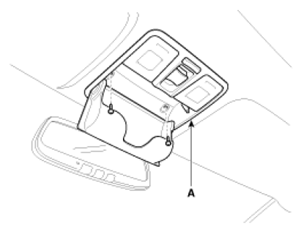

    Fig 1: Identifying Overhead Console
    G07256856Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the connectors (A) of sunroof switch and lamp switch then remove the overhead console lamp assembly.
    Fig 2: Identifying Connectors
    G07256857Courtesy of HYUNDAI MOTOR CO.
  4. If necessary to replace the bulb, replace the bulb after disconnecting the connectors.
