Repair Procedures: Inspection

WARNING: This page is about a different car, the 2011 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
  1. If the continuity is not as specified, replace the map lamp switch.

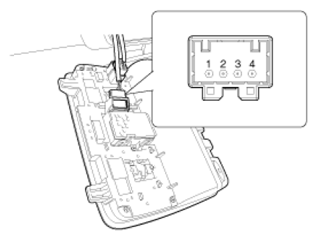

    Fig 1: Identifying Map Lamp Switch Connector Terminals
    G07256854Courtesy of HYUNDAI MOTOR CO.
    ITEM DESCRIPTION

    No. Description
    1 Ground(-)
    2 Battery(+)
    3 Door(-)
    4 Room(+)
    Fig 2: Map Lamp Switch - Circuit Diagram
    G07256855Courtesy of HYUNDAI MOTOR CO.
