Repair Procedures: Removal

Remove the battery and the battery tray. (Refer to REPAIR PROCEDURES .
Remove the under cover (A).
Under cover installation bolt :

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

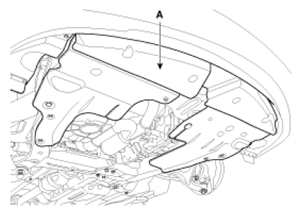

Fig 1: Identifying Under Cover
Courtesy of HYUNDAI MOTOR CO.
Replace new gasket and the plug after draining the automatic transaxle fluid by removing the drain plug.
(Refer to "AUTOMATIC TRANSAXLE SYSTEM .
Remove the valve body cover (A) and eyebolt (B).
Tightening torque:
1. 12.8 ~ 14.7 N.m (1.3 ~ 1.5 kgf.m, 9.4 ~ 10.8 lb-ft)
2. 34.3 ~ 44.1 N.m (3.5 ~ 4.5 kgf.m, 25.3 ~ 32.6 lb-ft)
CAUTION: The gasket of the eyebolt use new one.

NOTE: Remove installation bolts in the engine room first and then remove others under the vehicle.

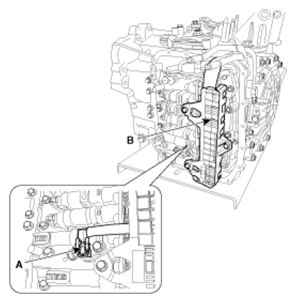

Fig 2: Identifying Valve Body Cover And Eyebolt
Courtesy of HYUNDAI MOTOR CO.
Remove the bolt (3ea) after disconnecting the solenoid valve connector (B) and the oil temperature sensor connector (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 3: Identifying Oil Temperature Sensor Connector And Solenoid Valve
Courtesy of HYUNDAI MOTOR CO.
Remove the solenoid valve (A) after removing the solenoid support.

Fig 4: Identifying Solenoid Valve
Courtesy of HYUNDAI MOTOR CO.

CAUTION: When installing, apply the ATF oil or White Vaseline to the O-ring not to be damaged.
