Repair Procedures: Removal

WARNING: This page is about a different car, the 2011 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative(-) battery terminal.
  2. Remove the trunk lid trim.

    (Refer to the "TRUNK TRIM

  3. Remove the bulb(A) turning it in the counterclockwise direction.

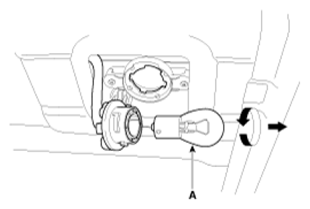

    Fig 1: Identifying High Mounted Stop Lamp Bulb
    G07256868Courtesy of HYUNDAI MOTOR CO.
