Component Inspection

Check OTS resistance

IG "OFF" and disconnect OTS connector.

Measure resistance between signal and ground terminals of OTS connector after checking out the temperature of EOTS with scantool. (Component Side)

Specification:

TEMPERATURE AND RESISTANCE SPECIFICATIONS

Temperature(°C/°F)	Resistance(kΩ)
-40°C	52.15kΩ
-20°C	16.52kΩ
0°C	6.0kΩ
20°C	2.45kΩ
40°C	1.11kΩ
60°C	0.54kΩ
80°C	0.29kΩ

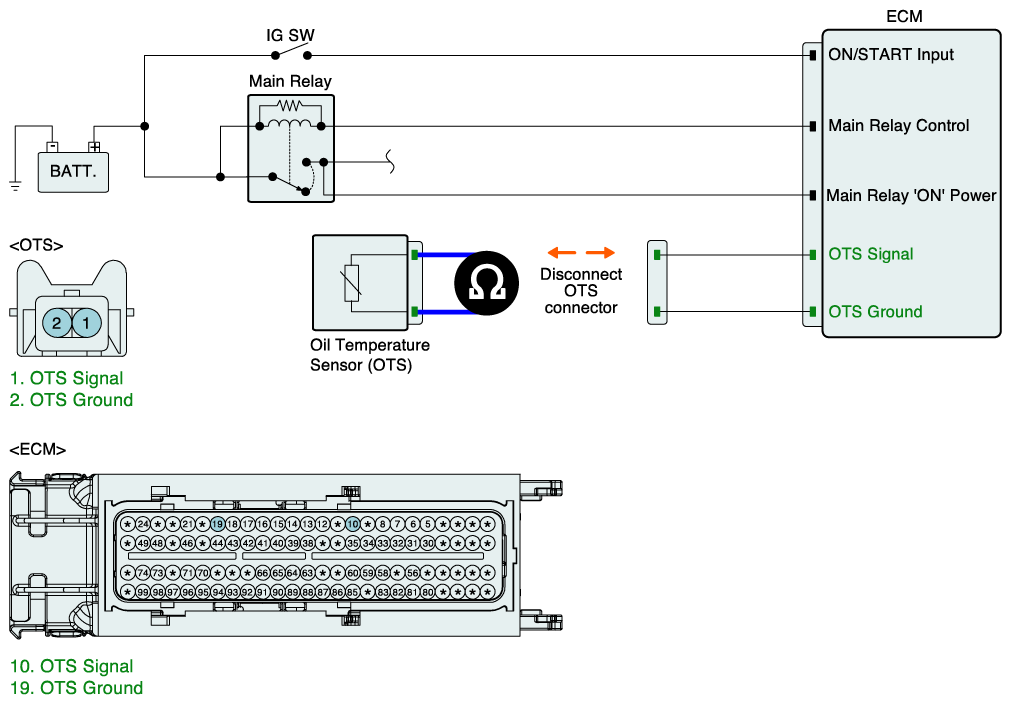

Fig 1: Measuring Resistance Between Signal And Ground Terminals Of OTS Connector After Checking Out Temperature Of EOTS With Scantool (Component Side)

Courtesy of HYUNDAI MOTOR CO.

Is the measured resistance within specification?
YES
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known - good OTS and check for proper operation. If the problem is corrected, replace OTS and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
