CVVT Oil Temperature Sensor (OTS)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

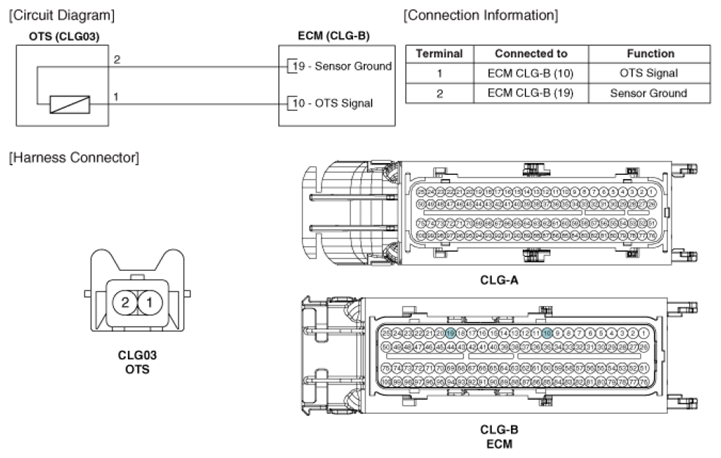

Fig 1: Continuous Variable Valve Timing (CVVT) System Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
