Home >> Hyundai >> 2011 >> Azera GLS >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Driveshaft Assembly >> Front Driveshaft >> Components and Components Location >> Components

Components and Components Location: Components

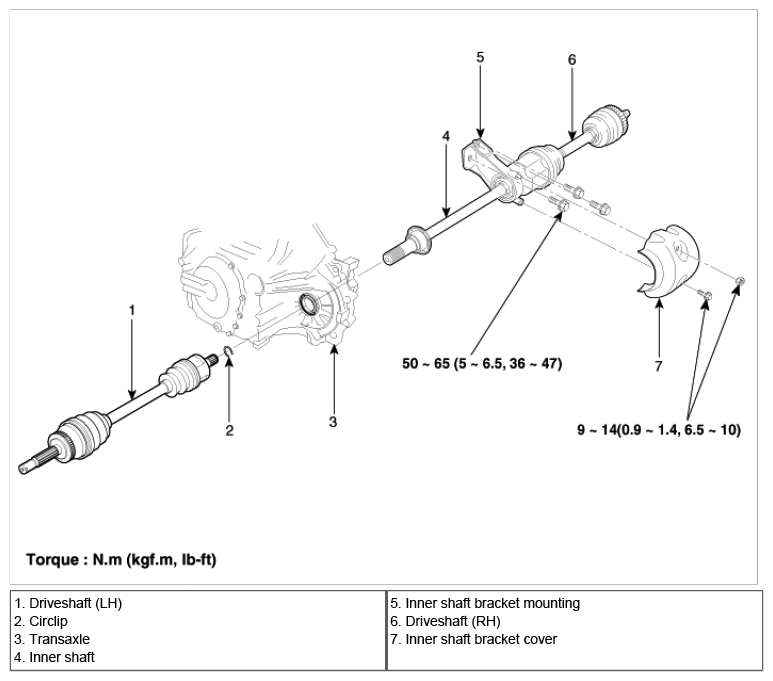

Fig 1: Driveshaft Assembly Replacement Components With Torque Specifications

G06801635

Courtesy of HYUNDAI MOTOR CO.
