Repair procedures (A4AF3): Removal

Remove both sides of center console cover (A).

Fig 1: Identifying Center Console Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the center console cover (A).

Fig 2: Identifying Center Console Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the parking brake lever cover (A).

Fig 3: Identifying Parking Brake Lever Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the center console mounting bolts (A, B) and remove the center console. (Refer to CONSOLE )

Fig 4: Identifying Center Console Mounting Bolts (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

Fig 5: Identifying Center Console Mounting Bolts (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Disconnect lever assembly electrical connector (A).

Fig 6: Identifying Lever Assembly Electrical Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the control cable cotter pin (A).

Fig 7: Identifying Control Cable Cotter Pin
Courtesy of HYUNDAI MOTOR CO.
Remove control cable hold (lever side).

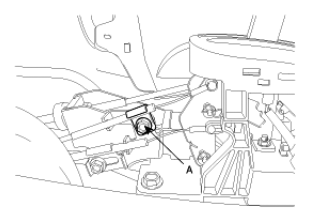

Remove the key interlock cable mounting nut (A) and disconnect the cable.

Fig 8: Identifying Key Interlock Cable Mounting Nut
Courtesy of HYUNDAI MOTOR CO.

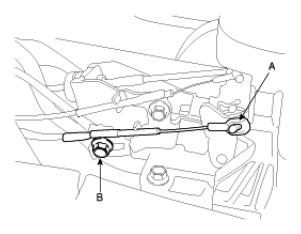

Remove the shift lock cable P-LOCK cam (A).
Remove the shift lock cable mounting nut (B). (Nut: 1EA)

Fig 9: Identifying Shift Lock Cable P-Lock Cam And Mounting Nut
Courtesy of HYUNDAI MOTOR CO.
Remove the shift lever bolt (A). (Bolt: 4EA)

Fig 10: Identifying Shift Lever Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the shift lever assembly.

Fig 11: Identifying Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.
