Hydraulic Pressure Test
- Warm up the engine until the automatic transaxle fluid temperature is 80 ~ 100 °C (176 ~ 212 °F).
- Jack up the vehicle so that the wheels are free to turn.
- Connect the engine tachometer.

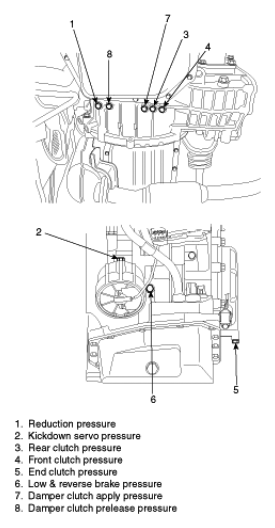

- Connect the oil pressure gauge (09452-21500) and the oil pressure gauge adapter (09452-21002, 09452-21001) to each pressure discharge port. But use the gauge (30 kg/cm2
) when measuring the reverse pressure, front clutch pressure and Low & reverse brake pressure.
Courtesy of HYUNDAI MOTOR CO.
- If a value is outside the standard range, correct the problem while referring to the hydraulic pressure test diagnosis table. Refer to STANDARD HYDRAULIC PRESSURE TEST
