Fluid Leaks Inspection

Check for leaks from the transmission. If there are leaks, it is necessary to repair or replace O-ring, seal packings, oil seals, plugs or other parts.

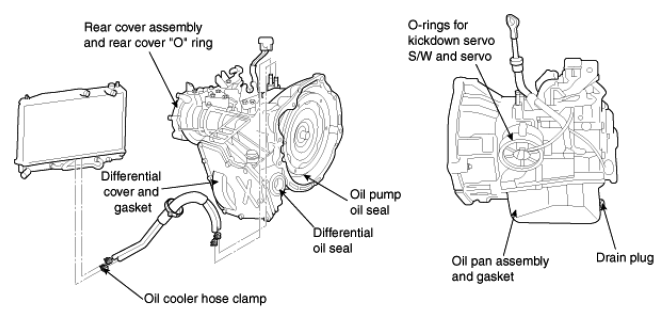

Fig 1: Inspecting Leaks From Transmission
G06879646Courtesy of HYUNDAI MOTOR CO.
