Monitor Scan Tool Data

  1. Connect scan tool to data link connector (DLC)
  2. Ignition "ON" & Engine "OFF".
  3. Monitor the "TRANSAXLE RANGE SWITCH" parameter on the scan tool
  4. Move selector lever from "P" range to "L" range.

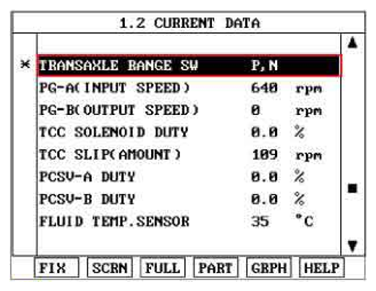

    Fig 1: Monitoring Transaxle Range Switch Parameter On Scan Tool - P, N Range
    G06880964Courtesy of HYUNDAI MOTOR CO.

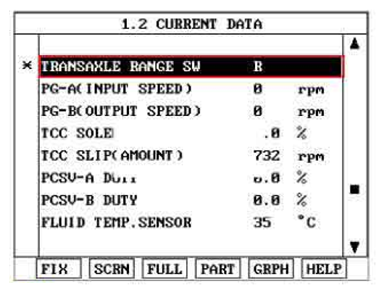

    Fig 2: Monitoring Transaxle Range Switch Parameter On Scan Tool - R Range
    G06880965Courtesy of HYUNDAI MOTOR CO.
    Fig 3: Monitoring Transaxle Range Switch Parameter On Scan Tool - D Range
    G06880966Courtesy of HYUNDAI MOTOR CO.

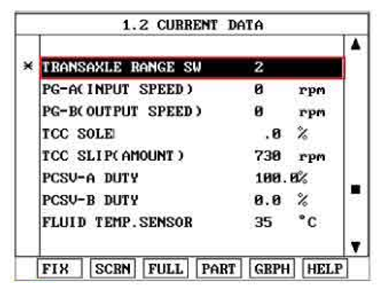

    Fig 4: Monitoring Transaxle Range Switch Parameter On Scan Tool - 2 Range
    G06880967Courtesy of HYUNDAI MOTOR CO.

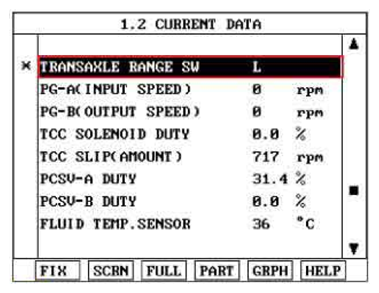

    Fig 5: Monitoring Transaxle Range Switch Parameter On Scan Tool - L Range
    G06880968Courtesy of HYUNDAI MOTOR CO.
  5. Does "TRANSAXLE RANGE SWITCH" follow the reference data?

    YES

    1. Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure

    NO

    1. Go to "W/HARNESS INSPECTION " procedure

    * Most of fault about inhibitor switch, result from faulty shift cable adjustment or incorrect location of manual control lever and inhibitor switch. So, when DTC which related Inhibitor switch or engine start defectiveness at "P" range happen, After check the shift cable adjustment or location of manual control lever and inhibitor switch, repair or replace as necessary.
