Home >> Hyundai >> 2011 >> Accent GLS, Automatic >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag Module >> Driver Airbag (DAB) Module and Clock Spring >> Components and Components Location >> Components

Components and Components Location: Components

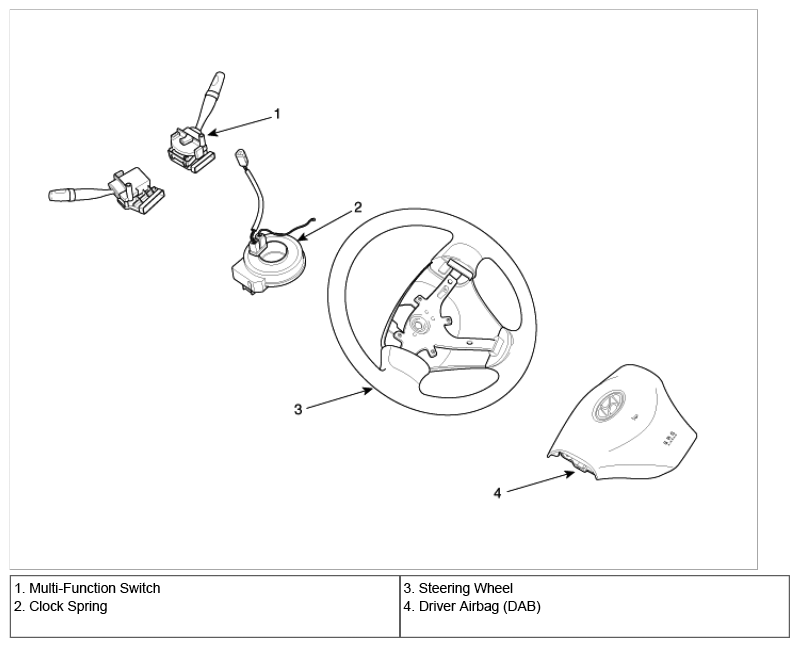

Fig 1: Identifying Driver Airbag (DAB) Module And Clock Spring Components

G06882379

Courtesy of HYUNDAI MOTOR CO.
