Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

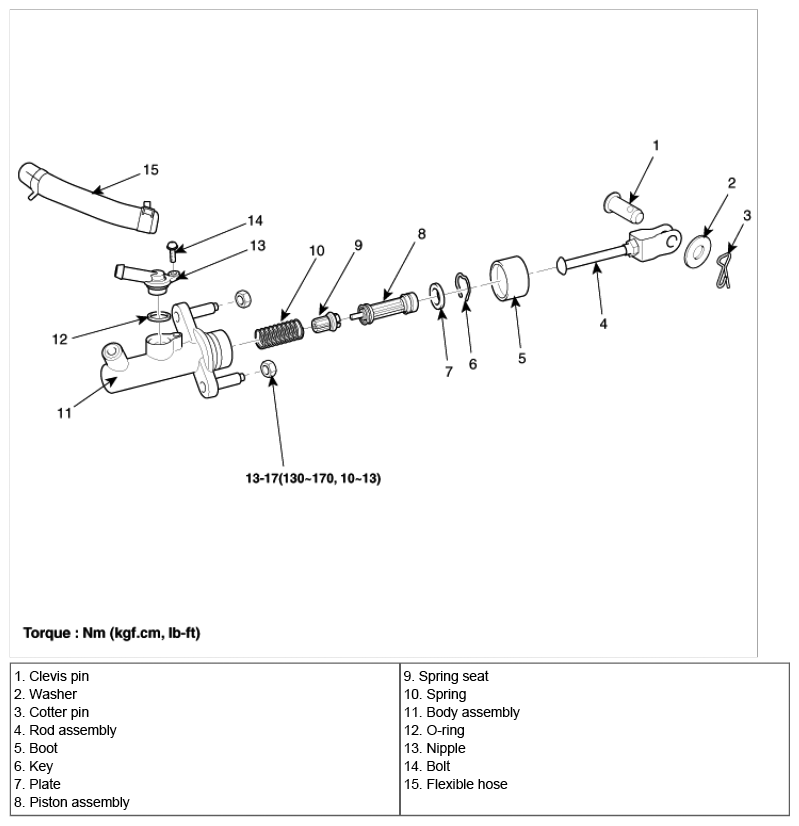

Fig 1: Exploded View Of Clutch Master Cylinder Components With Torque Specifications
G06879505Courtesy of HYUNDAI MOTOR CO.
