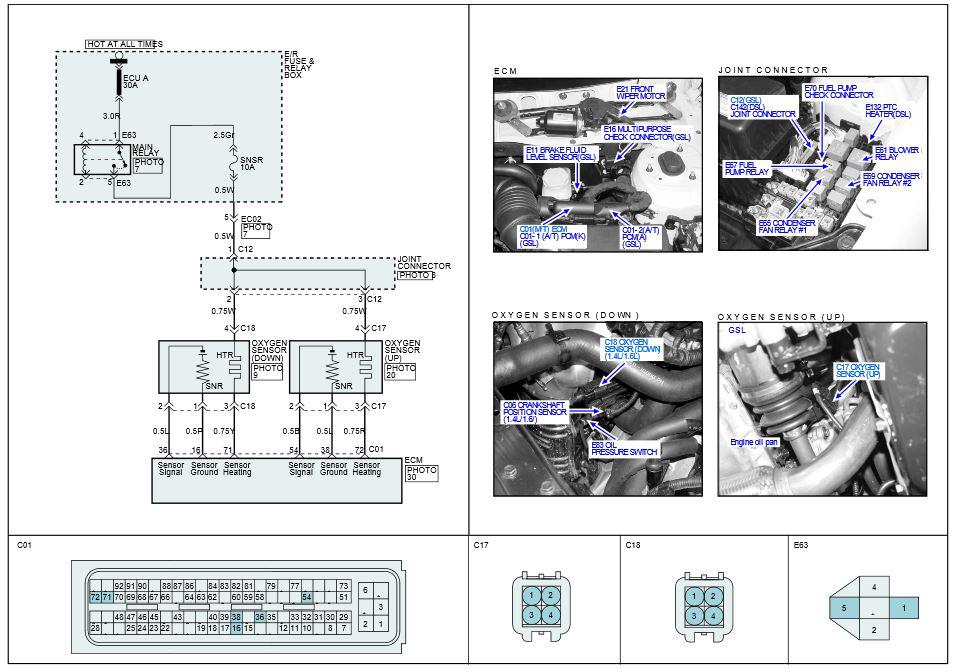

Home >> Hyundai >> 2011 >> Accent GLS, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 2) >> DTC P0136: O2 Sensor Circuit (Sensor2) >> General Information >> Schematic Diagram
