Circuit Diagram

[A/T]

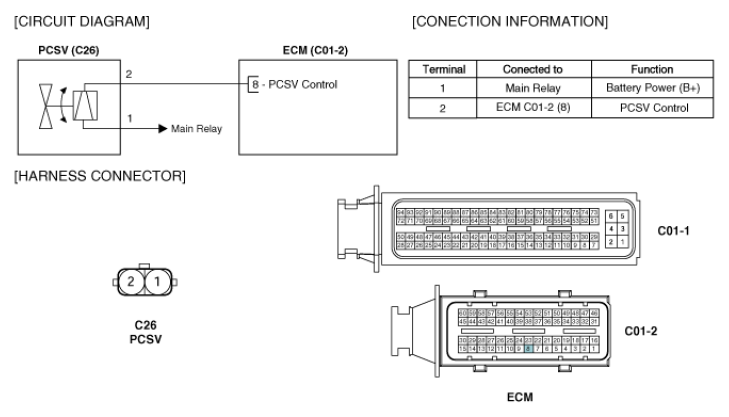

Fig 1: Purge Control Solenoid Valve Circuit Diagram - A/T

G06879467

Courtesy of HYUNDAI MOTOR CO.

[M/T]

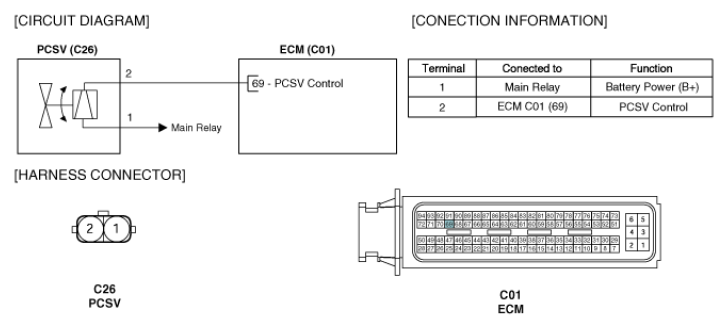

Fig 2: Purge Control Solenoid Valve Circuit Diagram - M/T

G06879468

Courtesy of HYUNDAI MOTOR CO.
