Components and Components Location: Components

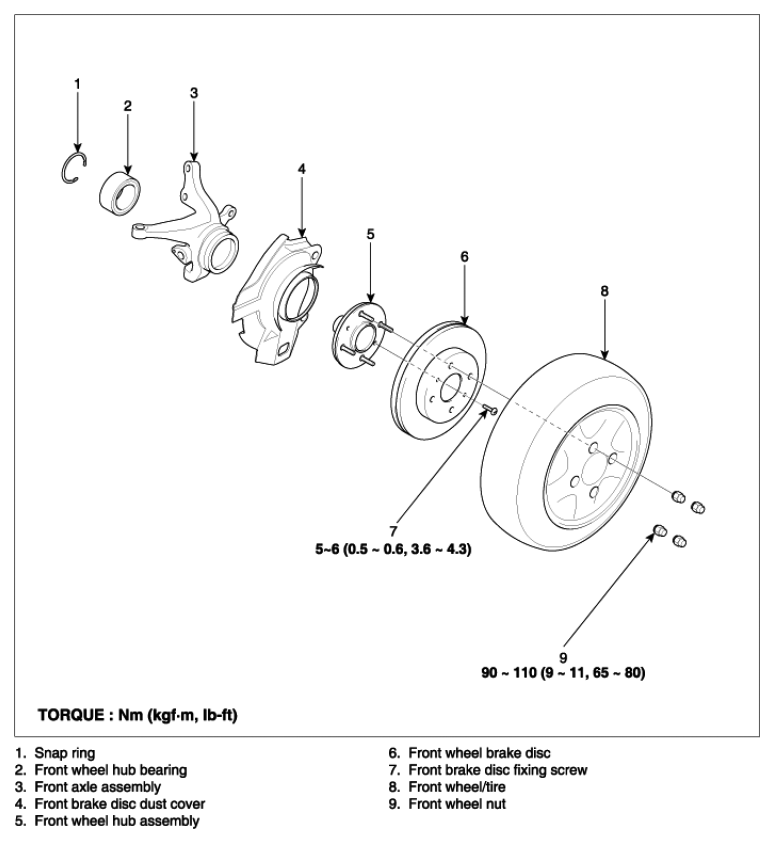

Fig 1: Front Hub - Axle Replacement Components With Torque Specifications

G06882240

Courtesy of HYUNDAI MOTOR CO.
