Home >> Hyundai >> 2011 >> Accent GLS, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System (Abs) >> ABS Control Unit >> Components and Components Location >> Components

Components and Components Location: Components

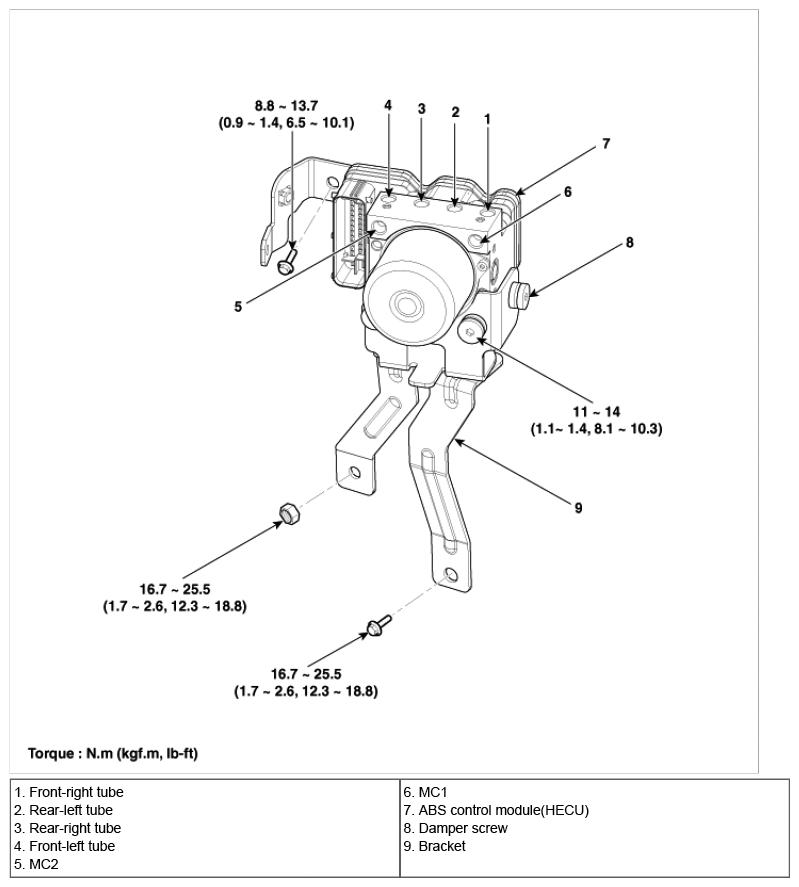

Fig 1: ABS Control Unit Components With Torque Specifications

G06880026

Courtesy of HYUNDAI MOTOR CO.
