Components and Components Location: Components

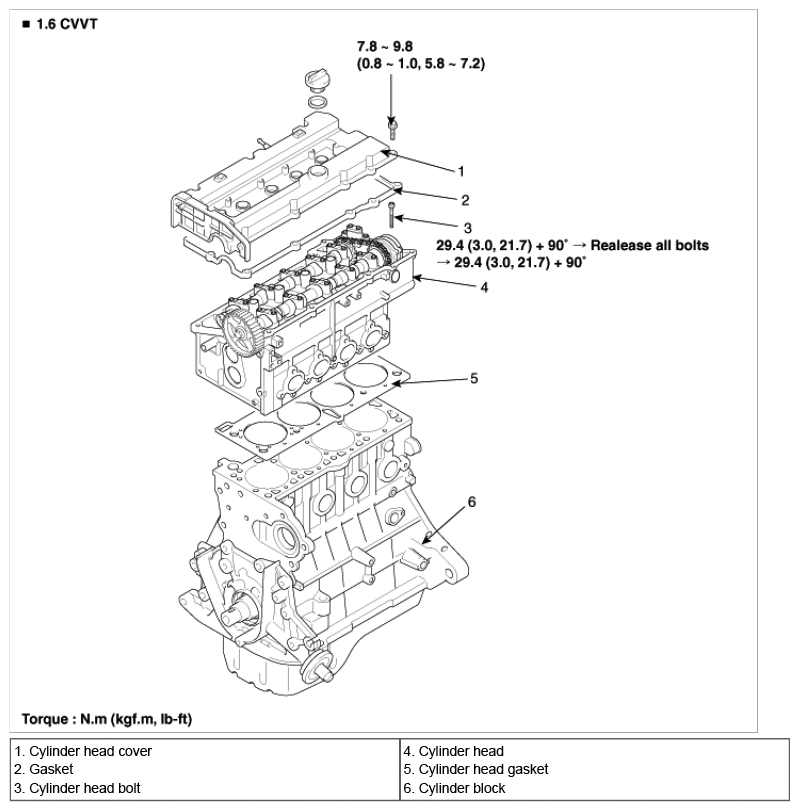

Fig 1: Cylinder Head Assembly Replacement Components (1 Of 2) With Torque Specifications
G06879073Courtesy of HYUNDAI MOTOR CO.

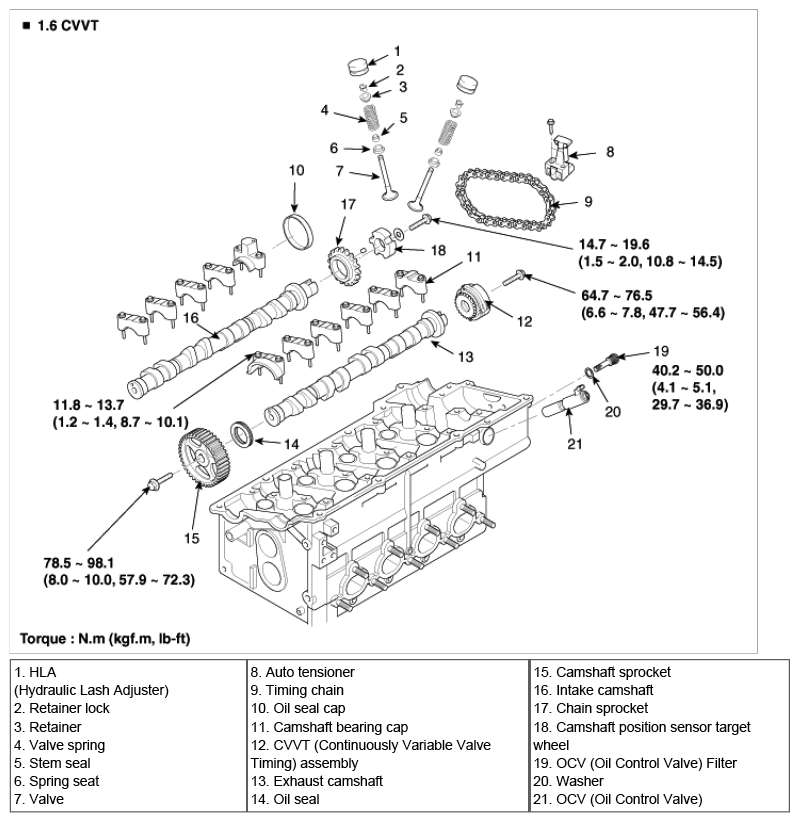

Fig 2: Cylinder Head Assembly Replacement Components (2 Of 2) With Torque Specifications
G06879074Courtesy of HYUNDAI MOTOR CO.
