Components and Components Location: Components

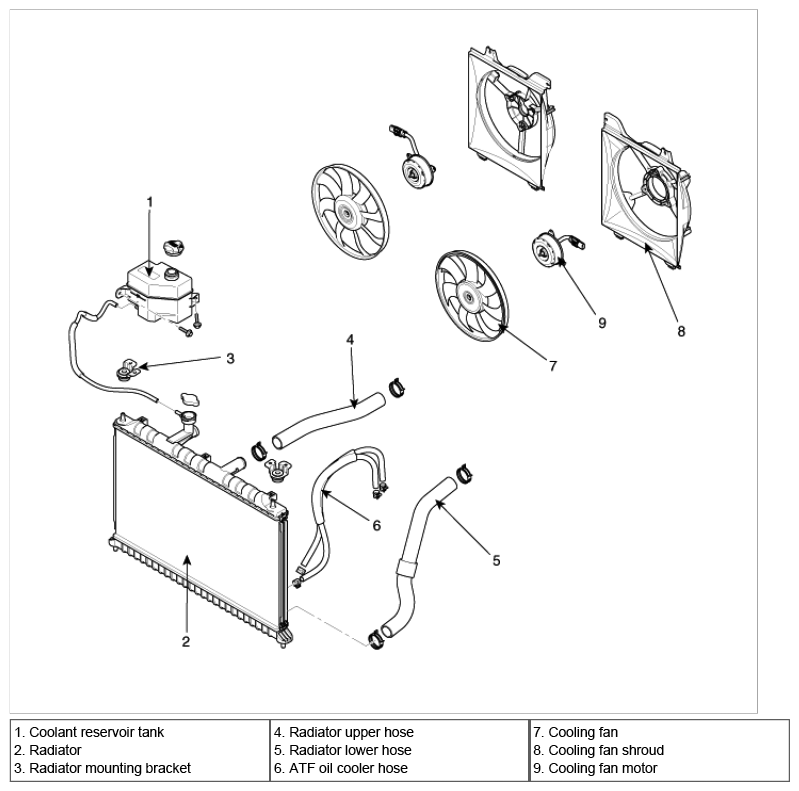

Fig 1: Identifying Cooling System Components (1 Of 2)
G06879186Courtesy of HYUNDAI MOTOR CO.

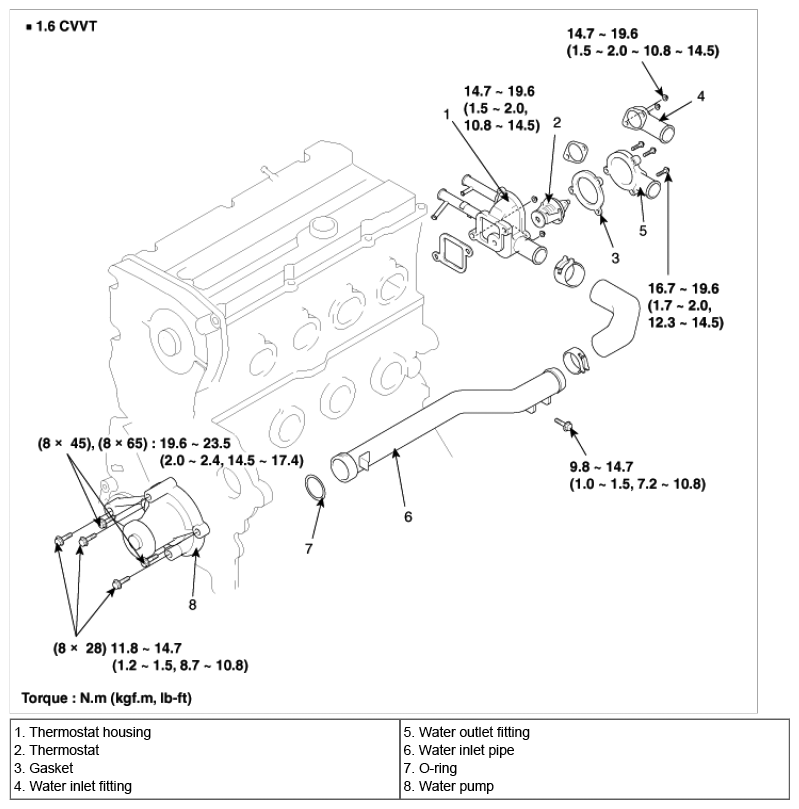

Fig 2: Cooling System Replacement Components (2 Of 2) With Torque Specifications
G06879187Courtesy of HYUNDAI MOTOR CO.
