Manual Transaxle Control System
>>
Manual Transaxle Shift Control
>>
Components and Components Location (M5CF1)
>>
Components (1)
Components (1)

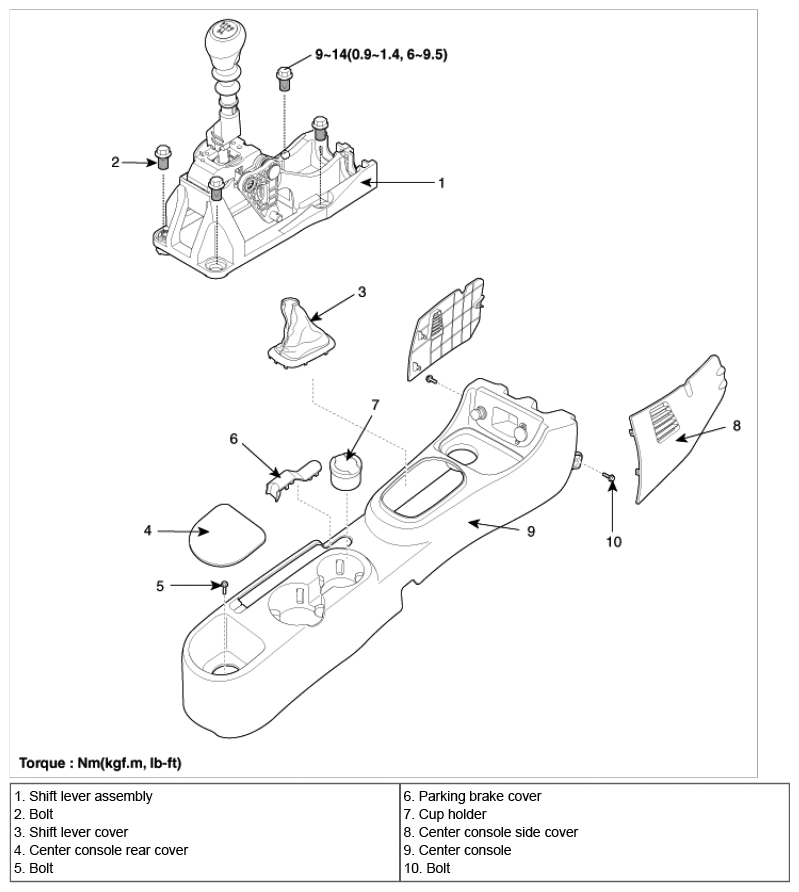

Fig 1: Manual Transaxle Shift Control System Replacement Components With Torque Specifications (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
