Home >> Hyundai >> 2011 >> Accent GL >> Repair and Diagnosis >> Transmission >> Clutch >> Clutch System >> Components and Components Location >> Components

Components and Components Location: Components

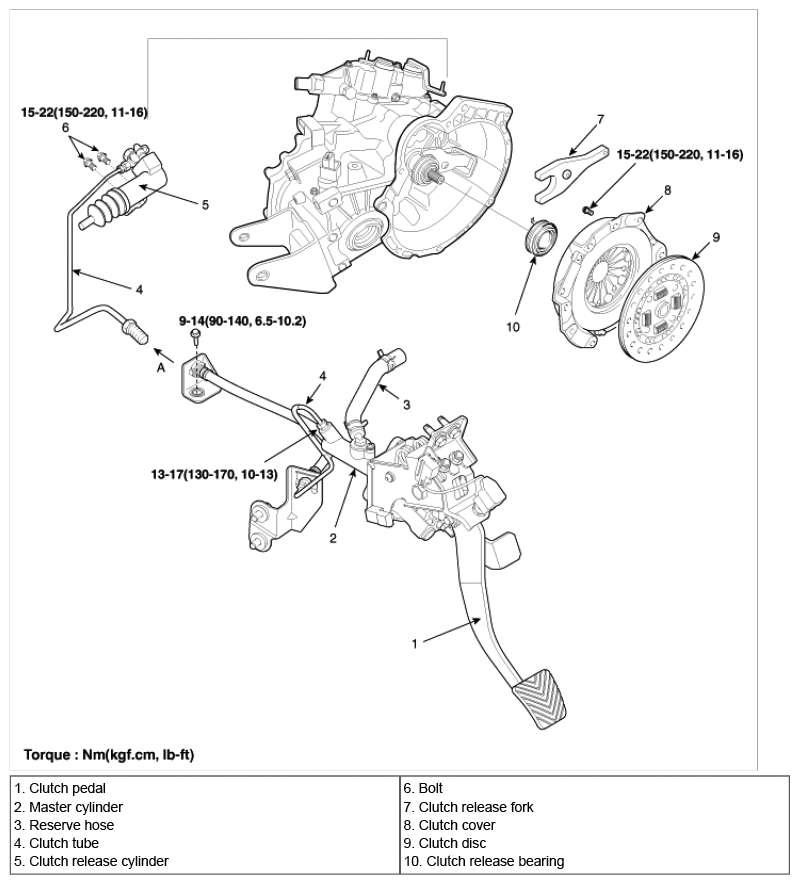

Fig 1: Clutch System Replacement Components With Torque Specifications

G06879491

Courtesy of HYUNDAI MOTOR CO.
