Component Inspection

ISCA visual check
1. Key "OFF".
2. Disassemble ISCA.
3. Check contamination, damage or stuck on ISCA.
4. Check the operating sound when key turns "OFF" to "ON".
5. Is ISCA OK?
  YES
  1. Go to " 2 ISCA check" procedure.
  NO
  1. Substitute with a known - good ISCA and check for proper operation.
    If the problem is corrected, replace ISCA and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

ISCA check

Key "OFF".
Disassemble ISCA.
Measure the resistance between terminal 1 and 2 of ISCA harness connector. (Component side)

Measure the resistance between terminal 2 and 3 of ISCA harness connector. (Component side)

Specification:

TEMPERATURE RESISTANCE SPECIFICATION CHART

Temperature (°F)	Closing Coil Resistance (Ω)	Opening Coil Resistance (Ω)
68 ~ 95	15.4 ± 0.8	11.9 ± 0.8

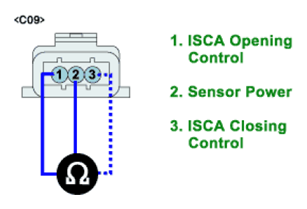

Fig 1: Measuring Resistance Between Terminal 1, 2 And 3 Of ISCA Harness Connector

G06881859

Courtesy of HYUNDAI MOTOR CO.

Is the measured resistance within specifications?
YES
1. Substitute with a known - good ECM and check for proper operation.
  If the problem is corrected, replace ECM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
1. Substitute with a known - good ISCA and check for proper operation.
  If the problem is corrected, replace ISCA and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
