Standard Flow Of Diagnostic Troubleshooting: Notes

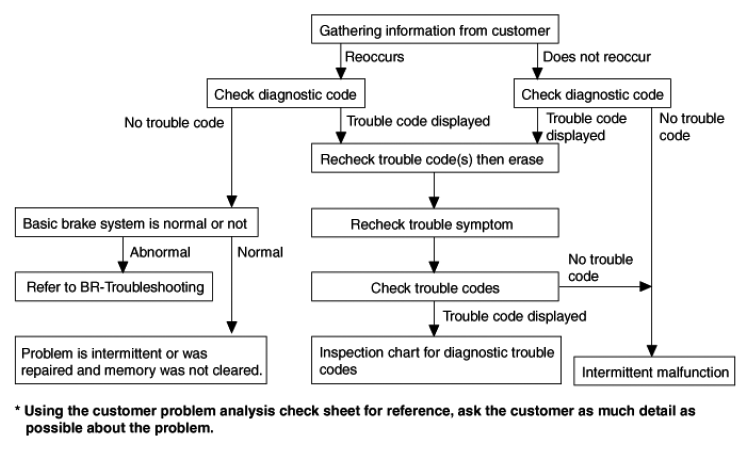

Fig 1: ABS Diagnostic Troubleshooting Standard Flow Diagram

G06880011

Courtesy of HYUNDAI MOTOR CO.
