Electrical Component Locations
>>
Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 2: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 3: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 4: Behind Front Bumper
Courtesy of HYUNDAI MOTOR CO.
Fig 5: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 6: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 7: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 8: Lower Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 9: Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 10: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 11: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 12: Lower Left Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 13: Right Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 14: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 15: Top Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 16: Top Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 17: Top Front Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 18: Left Front Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 19: Right Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 20: Right Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 21: Top Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 22: Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 23: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 24: Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 25: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 26: Right Front Wheelwell
Courtesy of HYUNDAI MOTOR CO.
Fig 27: Left "A" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 28: Under Left End Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 29: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 30: Behind Left Kick Panel
Courtesy of HYUNDAI MOTOR CO.
Fig 31: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 32: Left "A" Pillar (Right Similar)
Courtesy of HYUNDAI MOTOR CO.
Fig 33: Steering Column
Courtesy of HYUNDAI MOTOR CO.
Fig 34: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 35: Steering Column
Courtesy of HYUNDAI MOTOR CO.

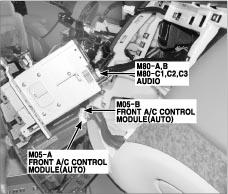

Fig 36: Behind Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 37: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

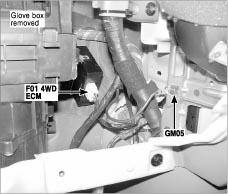

Fig 38: Behind Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 39: Behind Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 40: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 41: Center Console
Courtesy of HYUNDAI MOTOR CO.

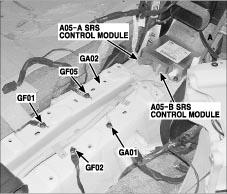

Fig 42: Under Center Console
Courtesy of HYUNDAI MOTOR CO.
Fig 43: Under Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 44: Under Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 45: Behind Right End Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 46: Behind Right Kick Panel
Courtesy of HYUNDAI MOTOR CO.
Fig 47: Top Center Of Windshield
Courtesy of HYUNDAI MOTOR CO.
Fig 48: Center Front Of Roof
Courtesy of HYUNDAI MOTOR CO.
Fig 49: Rear Of Roof
Courtesy of HYUNDAI MOTOR CO.
Fig 50: Left Front Door
Courtesy of HYUNDAI MOTOR CO.
Fig 51: Left Front Door
Courtesy of HYUNDAI MOTOR CO.
Fig 52: Left Front Door
Courtesy of HYUNDAI MOTOR CO.
Fig 53: Right Front Door
Courtesy of HYUNDAI MOTOR CO.
Fig 54: Right Front Door
Courtesy of HYUNDAI MOTOR CO.
Fig 55: Right Front Door
Courtesy of HYUNDAI MOTOR CO.
Fig 56: Left Rear Door (Right Similar)
Courtesy of HYUNDAI MOTOR CO.
Fig 57: Under Driver's Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 58: Under Driver's Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 59: Under Driver's Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 60: Under Front Passenger's Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 61: Under Front Passenger's Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 62: Under Driver's Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 63: Under Front Passenger's Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 64: Left "B" Pillar (Right Similar)
Courtesy of HYUNDAI MOTOR CO.
Fig 65: Top Of Fuel Tank
Courtesy of HYUNDAI MOTOR CO.
Fig 66: Left "C" Pillar (Right Similar)
Courtesy of HYUNDAI MOTOR CO.

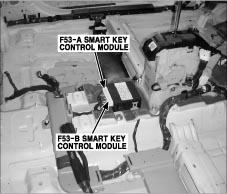

Fig 67: Under Rear Of Center Console
Courtesy of HYUNDAI MOTOR CO.
Fig 68: Under Rear Of Center Console
Courtesy of HYUNDAI MOTOR CO.
Fig 69: Right Front Floor
Courtesy of HYUNDAI MOTOR CO.

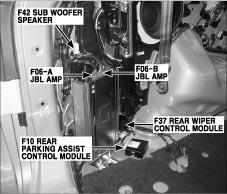

Fig 70: Left Quarterpanel
Courtesy of HYUNDAI MOTOR CO.
Fig 71: Left Quarterpanel
Courtesy of HYUNDAI MOTOR CO.

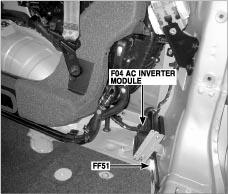

Fig 72: Right Quarterpanel
Courtesy of HYUNDAI MOTOR CO.
Fig 73: Left "D" Pillar (Right Similar)
Courtesy of HYUNDAI MOTOR CO.
Fig 74: Under Rear Of Vehicle
Courtesy of HYUNDAI MOTOR CO.
Fig 75: Tailgate
Courtesy of HYUNDAI MOTOR CO.
Fig 76: Tailgate
Courtesy of HYUNDAI MOTOR CO.
Fig 77: Tailgate
Courtesy of HYUNDAI MOTOR CO.
Fig 78: Top Of Tailgate
Courtesy of HYUNDAI MOTOR CO.
Fig 79: Under Left Rear Of Vehicle
Courtesy of HYUNDAI MOTOR CO.
Fig 80: Rear Fascia
Courtesy of HYUNDAI MOTOR CO.
Fig 81: Luggage Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 82: Center Of Rear Bumper
Courtesy of HYUNDAI MOTOR CO.

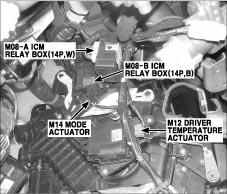

Fig 83: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 84: ICM Relay Box
Courtesy of HYUNDAI MOTOR CO.
Fig 85: Left Front Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 86: Center Console
Courtesy of HYUNDAI MOTOR CO.
Fig 87: Driver's Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 88: Right Quarterpanel
Courtesy of HYUNDAI MOTOR CO.
Fig 89: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 90: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

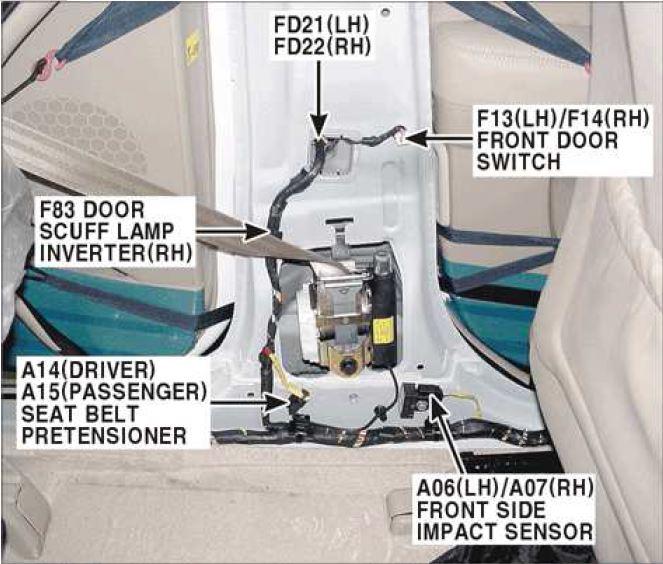

Fig 91: Lower Left Center Pillar
Courtesy of HYUNDAI MOTOR CO.

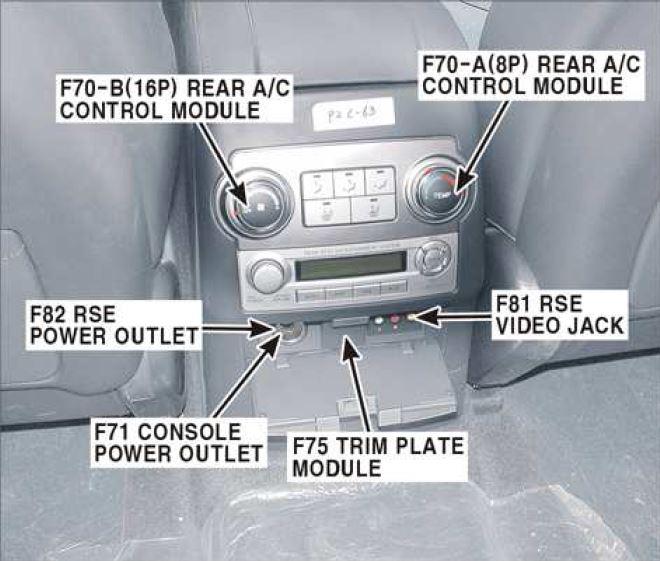

Fig 92: Rear of Center Console
Courtesy of HYUNDAI MOTOR CO.
