Quick Lookups
>>
Electrical Component Locations
>>
Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Left "A" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 2: Under Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

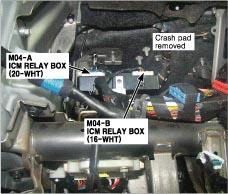

Fig 3: Behind Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 4: Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 5: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 6: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 7: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 8: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 9: Rear Door
Courtesy of HYUNDAI MOTOR CO.
Fig 10: Right Front Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 11: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 12: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

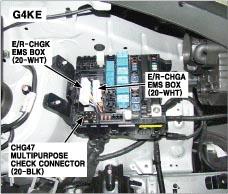

Fig 13: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 14: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 15: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 16: Top Of Transaxle
Courtesy of HYUNDAI MOTOR CO.
Fig 17: Right "B" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 18: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 19: Under Left Side Of Rear Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 20: Tail Gate
Courtesy of HYUNDAI MOTOR CO.
Fig 21: Left Side Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 22: Front Of Engine
Courtesy of HYUNDAI MOTOR CO.

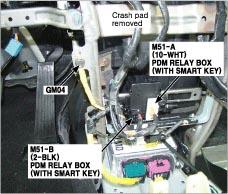

Fig 23: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 24: Steering Column
Courtesy of HYUNDAI MOTOR CO.
Fig 25: Top Of "C" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 26: Left "B" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 27: Under Driver's Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 28: Top Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 29: Rear Of Fuel Tank
Courtesy of HYUNDAI MOTOR CO.
Fig 30: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 31: Under Center Console
Courtesy of HYUNDAI MOTOR CO.
Fig 32: Rear Of Roof
Courtesy of HYUNDAI MOTOR CO.
Fig 33: Top Of Steering Column
Courtesy of HYUNDAI MOTOR CO.
Fig 34: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 35: Top Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 36: Right "A" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 37: Right "A" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 38: Top Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 39: Left Side Of Luggage Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 40: Driver's Door
Courtesy of HYUNDAI MOTOR CO.
Fig 41: Base Of Left "C" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 42: Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 43: Under Passenger's Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 44: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 45: Right Front Wheelwell
Courtesy of HYUNDAI MOTOR CO.
Fig 46: Base Of Right "C" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 47: Left Front Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 48: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 49: Left Side Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 50: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 51: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 52: Right Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 53: Under Center Console
Courtesy of HYUNDAI MOTOR CO.
Fig 54: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 55: Left Front Wheelwell
Courtesy of HYUNDAI MOTOR CO.
Fig 56: Right Front Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 57: Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 58: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 59: Driver's Door
Courtesy of HYUNDAI MOTOR CO.
Fig 60: Under Driver's Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 61: Left "A" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 62: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 63: Top Left Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 64: Left "A" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 65: Bottom Of Left "A" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 66: Steering Column
Courtesy of HYUNDAI MOTOR CO.
Fig 67: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 68: Steering Column
Courtesy of HYUNDAI MOTOR CO.
Fig 69: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 70: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 71: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 72: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 73: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 74: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 75: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 76: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 77: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 78: Under Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 79: Under Passenger's Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 80: Under Driver's Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 81: Under Driver's Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 82: Under Rear Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 83: Passenger's Door
Courtesy of HYUNDAI MOTOR CO.
Fig 84: Driver's Door
Courtesy of HYUNDAI MOTOR CO.
Fig 85: Passenger's Door
Courtesy of HYUNDAI MOTOR CO.
Fig 86: Rear Door
Courtesy of HYUNDAI MOTOR CO.
Fig 87: Under Driver's Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 88: Under Left Side Of Rear Bumper
Courtesy of HYUNDAI MOTOR CO.
Fig 89: Rear Bumper
Courtesy of HYUNDAI MOTOR CO.
Fig 90: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 91: Rear Of Console
Courtesy of HYUNDAI MOTOR CO.

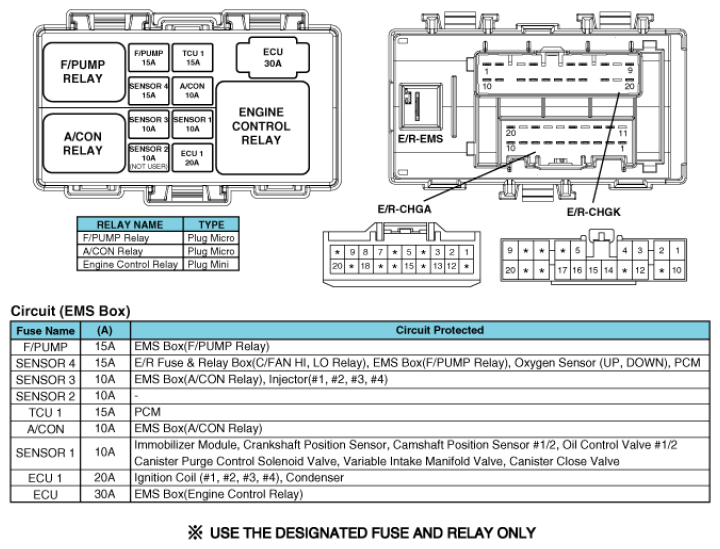

Fig 92: EMS Box Fuses And Relays
Courtesy of HYUNDAI MOTOR CO.

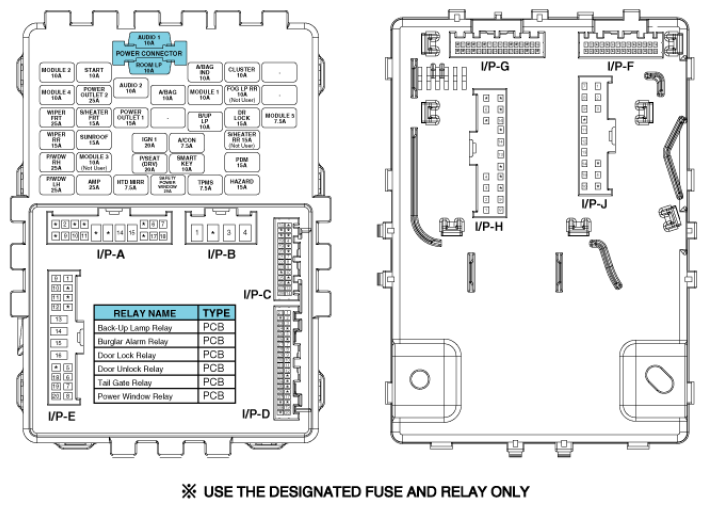

Fig 93: Passenger Compartment Junction/Relay Box
Courtesy of HYUNDAI MOTOR CO.

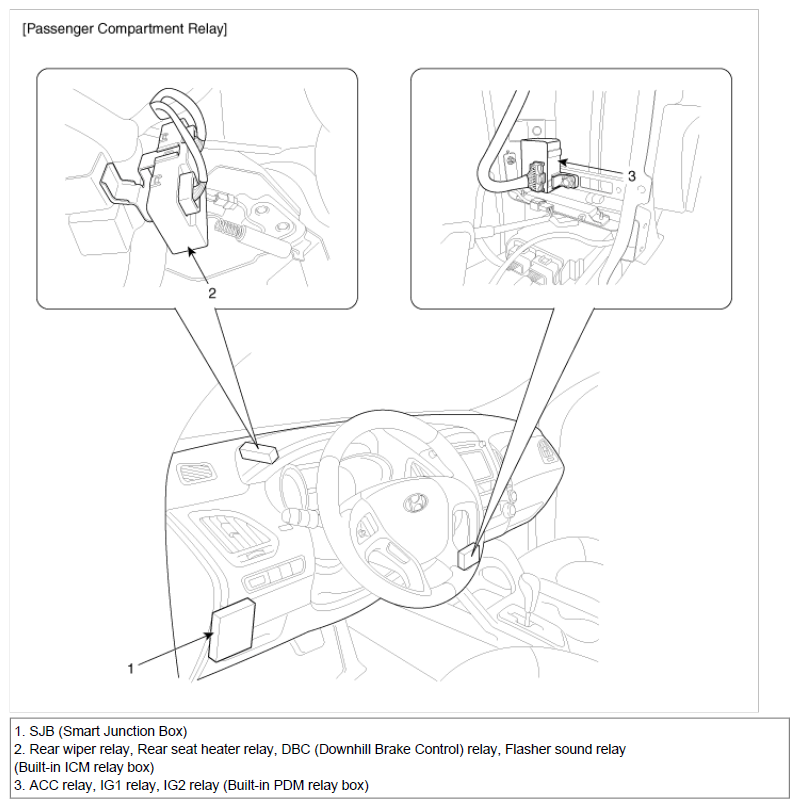

Fig 94: Passenger Compartment Relay Box
Courtesy of HYUNDAI MOTOR CO.
