Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

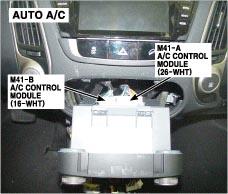

| A/C Control Module (Auto A/C) | Behind center of dash, forward of shift lever. See Figure. |

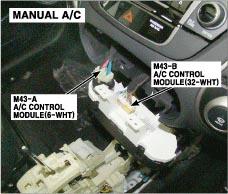

| A/C Control Module (Manual A/C) | Behind center of dash, forward of shift lever. See Figure. |

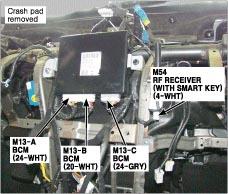

| BCM | Center of dash. See Figure. |

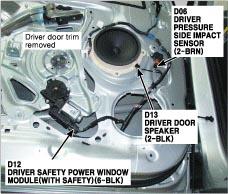

| Driver Safety Power Window Module | Driver door. See Figure. |

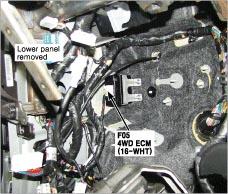

| ECM (4WD) | Bottom of left "A" pillar. See Figure. |

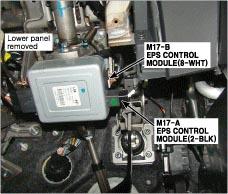

| EPS Control Module | Steering column. See Figure. |

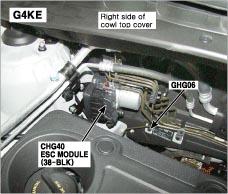

| ESC Module | Right rear of engine compartment. See Figure. |

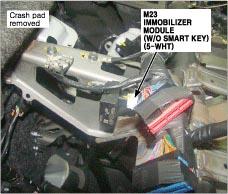

| Immobilizer Control Module | Under left side of dash. See Figure. |

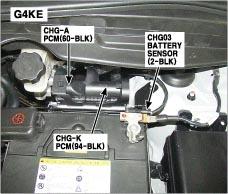

| PCM | Left rear of engine compartment. See Figure. |

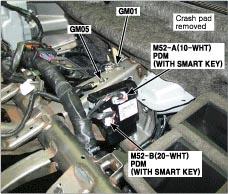

| PDM | Left side of dash. See Figure. |

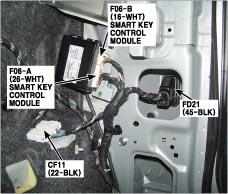

| Smart Key Control Module | Right "A" pillar. See Figure. |

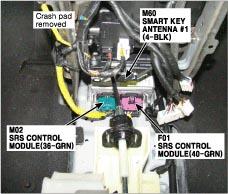

| SRS Control Module | Under center of dash. See Figure. |

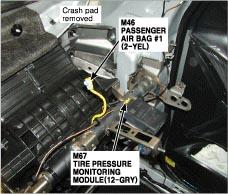

| Tire Pressure Monitoring Module | Right side of dash. See Figure. |
