Auto Lighting Control System Connector End View

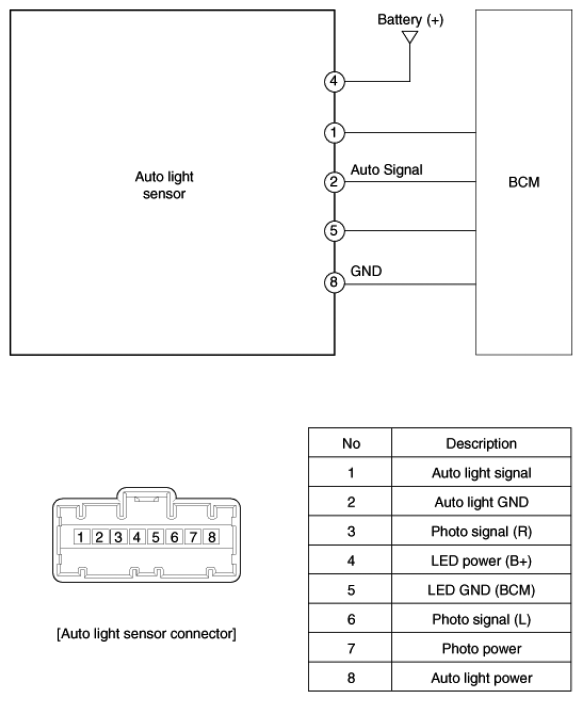

Fig 1: Auto Lighting Control System Connector End View

G06874885

Courtesy of HYUNDAI MOTOR AMERICA
