Engine Control System (Fuel System (G4KE - GSL 2.4))
>>
Component location
Component location

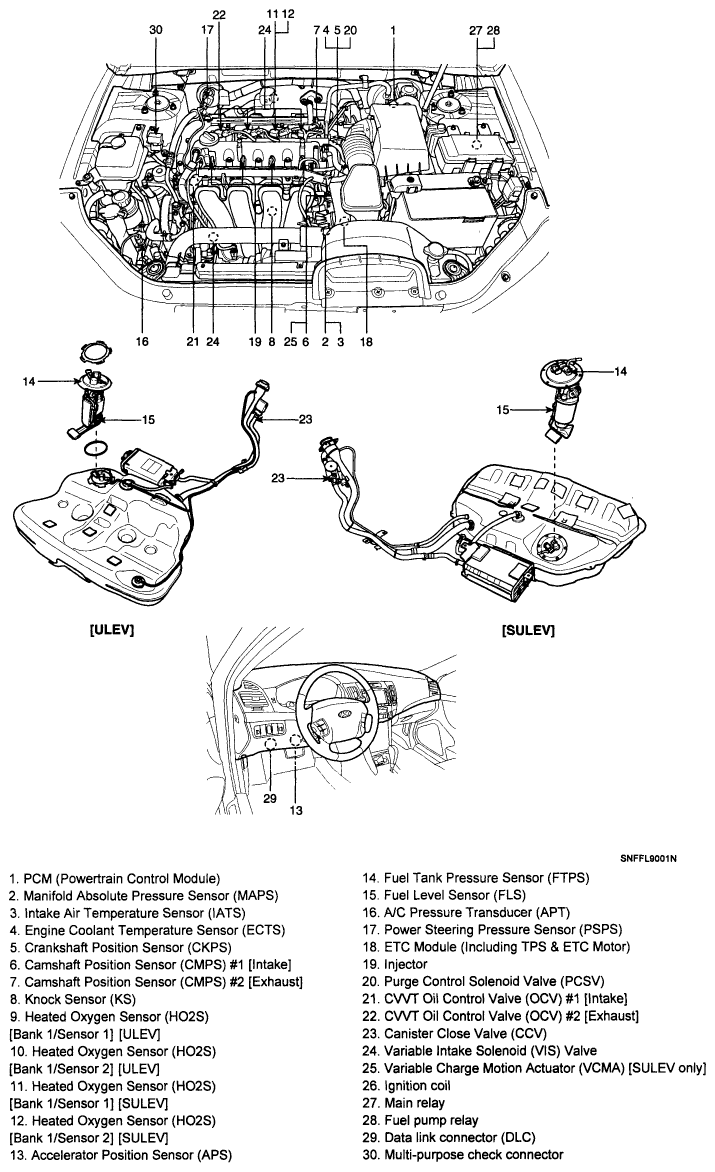

Fig 1: Identifying Engine Control System Component Location (1 Of 5)
Courtesy of HYUNDAI MOTOR CO.

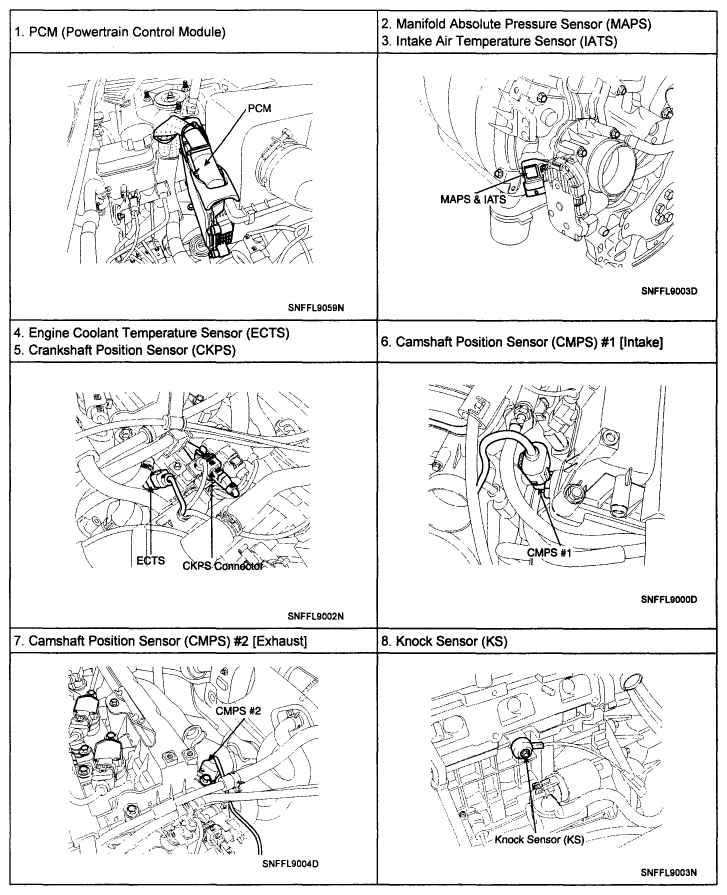

Fig 2: Identifying Engine Control System Component Location (2 Of 5)
Courtesy of HYUNDAI MOTOR CO.

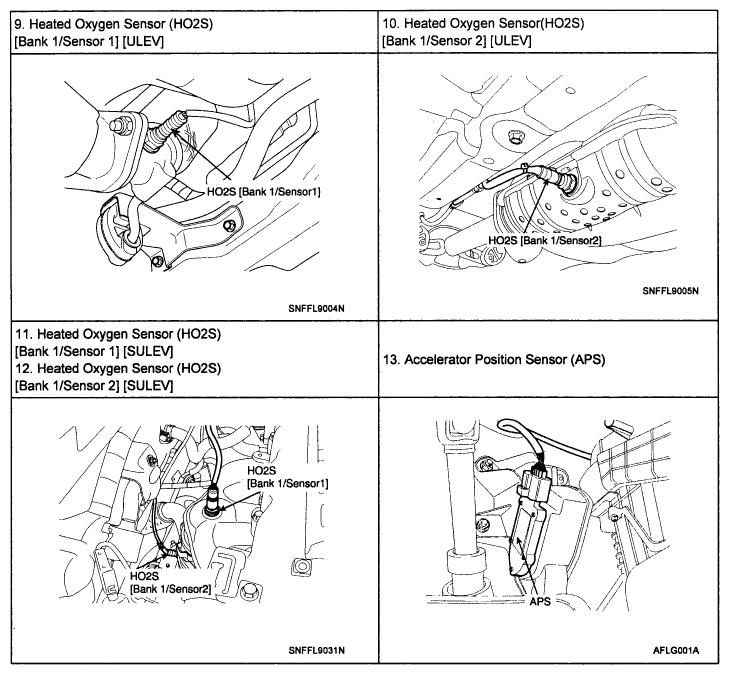

Fig 3: Identifying Engine Control System Component Location (3 Of 5)
Courtesy of HYUNDAI MOTOR CO.

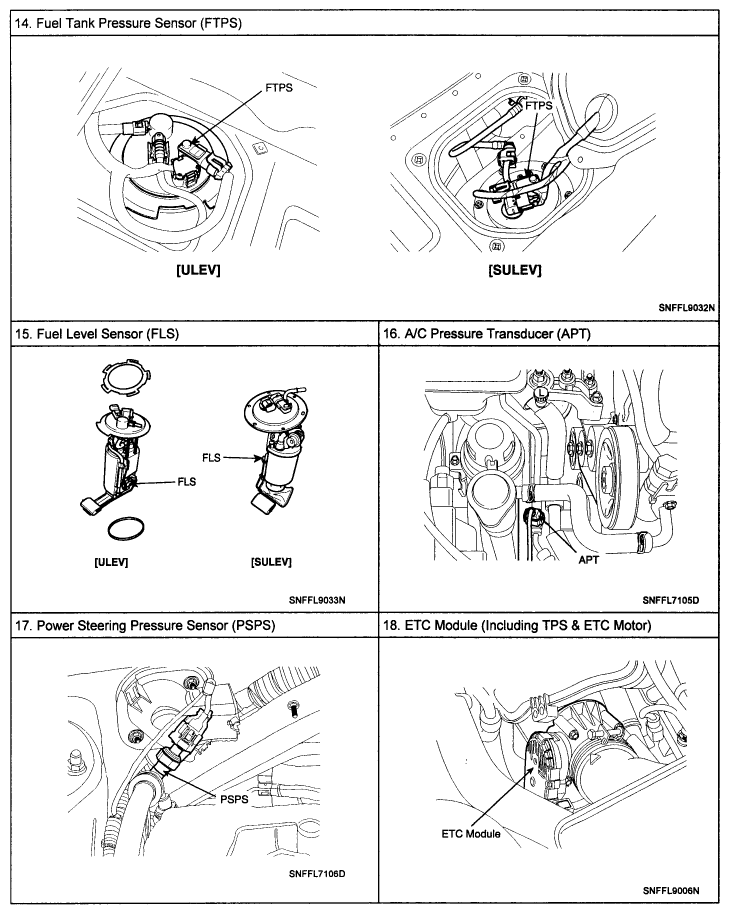

Fig 4: Identifying Engine Control System Component Location (4 Of 5)
Courtesy of HYUNDAI MOTOR CO.

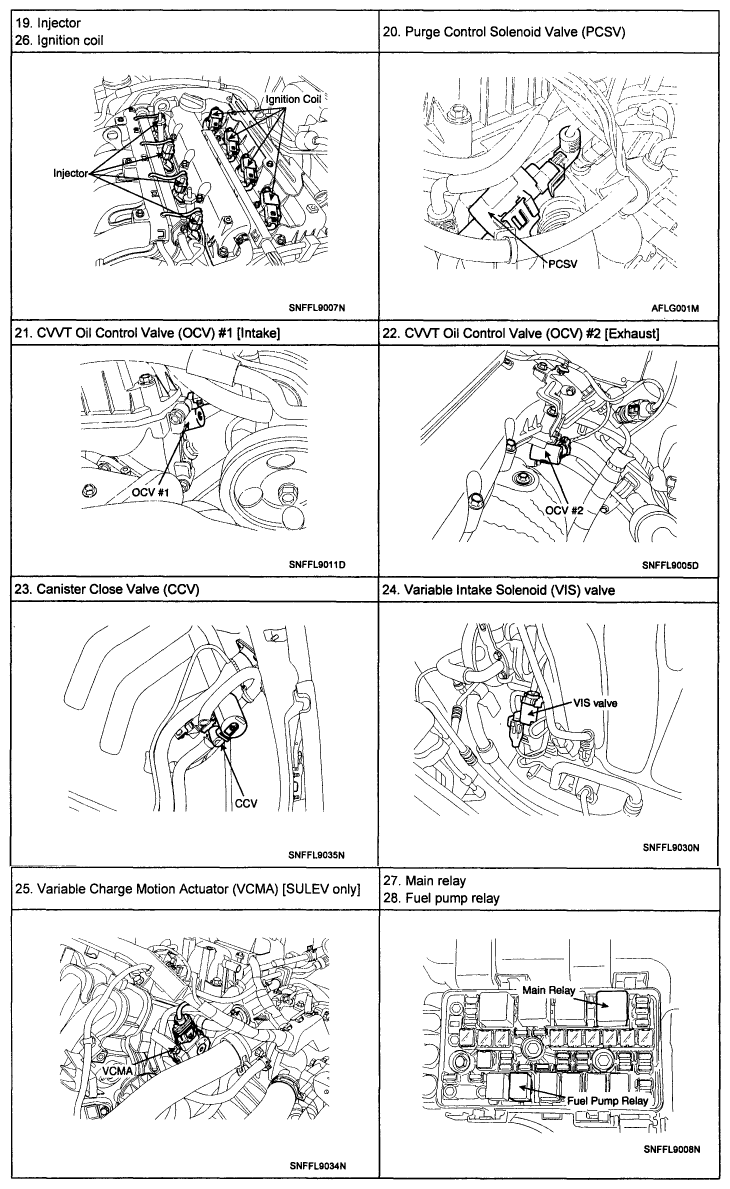

Fig 5: Identifying Engine Control System Component Location (5 Of 5)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
