Power Windows: Troubleshooting

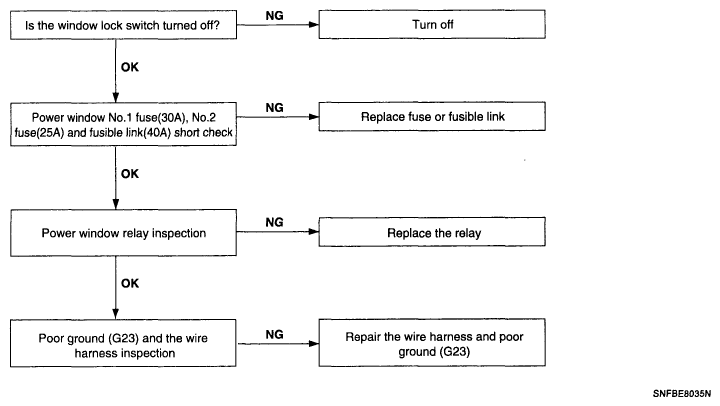

  1. No windows operate from the main switch on the driver's door.
    Fig 1: Diagnosis Flow Chart
    G06109802Courtesy of HYUNDAI MOTOR CO.

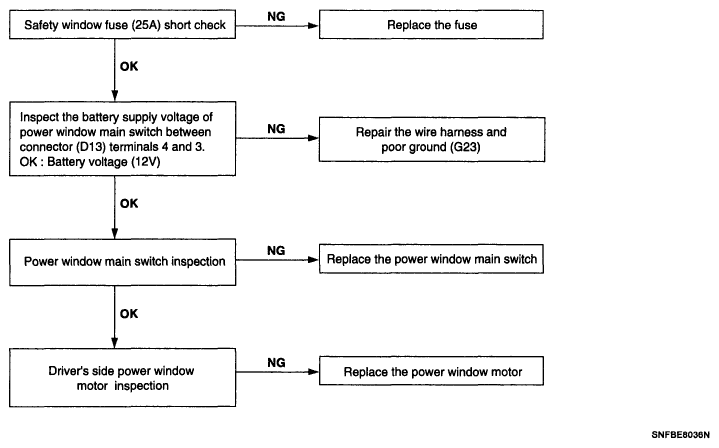

  2. Driver's side window does not operate.
    Fig 2: Diagnosis Flow Chart
    G06109803Courtesy of HYUNDAI MOTOR CO.

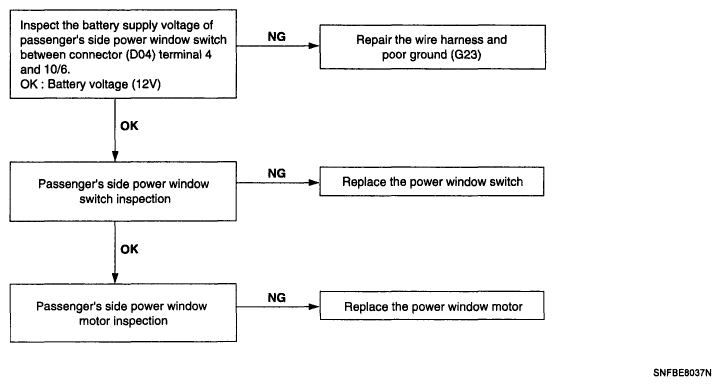

  3. Passenger's side window does not operate.
    Fig 3: Diagnosis Flow Chart
    G06109804Courtesy of HYUNDAI MOTOR CO.
