Transaxle Oil Temperature Sensor: Installation

Install the oil temperature sensor (A) and connect the sensor connector.
CAUTION: When connecting the oil temperature connector, check the connector for rust, dirt, or oil, then reconnect it.

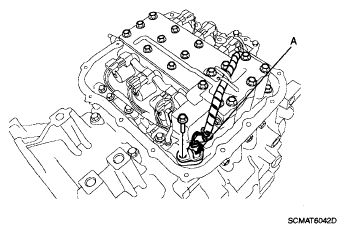

Fig 1: Identifying Transaxle Oil Temperature Sensor
Courtesy of HYUNDAI MOTOR CO.
Continue to apply liquid gasket at application points at the oil pan with 00.098in (2.5mm) thickness.
Liquid gasket Part name :

Threebond 1281B or Loctite FMD-546

Fig 2: Identifying Liquid Gasket At Application Points At Oil Pan With 00.098in (2.5mm) Thickness
Courtesy of HYUNDAI MOTOR CO.
Tighten the mounting bolt with the specified torque after installing the oil pan.
Tightening torque :

13~15Nm (1.3~1.5kgf.m, 9.4~10.8lb-ft)
Install the drain plug.
Tightening torque :

40~50Nm (4.0~5.0kgf.m, 28.9~36.2lb-ft)
Installation is the reverse of the removal.
