Input Speed Sensor: Removal

  1. Remove the battery terminal.
  2. Remove the battery and battery tray.
  3. Remove the air cleaner assembly, (see REMOVAL )
  4. Remove the input speed sensor connector.
  5. Remove the input speed sensor (A).

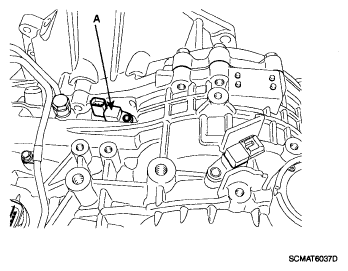

Fig 1: Identifying Input Speed Sensor
G05348807Courtesy of HYUNDAI MOTOR CO.
