Automatic Transaxle Control System: Installation

Install the retainer (A) and nuts (B).
Tightening torque :

10~14Nm (1.0~1.4kgf.m, 7.2~10.1lb-ft)

Fig 1: Identifying Retainer And Nuts
Courtesy of HYUNDAI MOTOR CO.
Install the shift lever assembly (A).
Tightening torque:

10~14Nm (1.0~1.4kgf.m, 7.2~10.1 lb-ft)

Fig 2: Identifying Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.

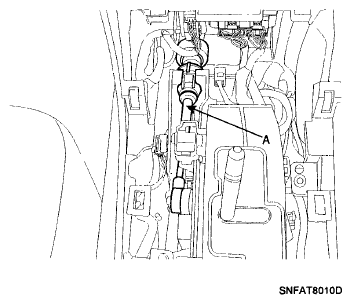

Connect the sports mode switch connector (A).

Fig 3: Identifying Sports Mode Switch Connector
Courtesy of HYUNDAI MOTOR CO.

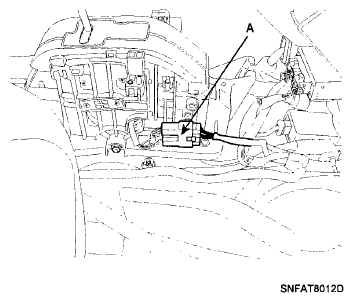

Install the shift cable assembly (A).

Fig 4: Identifying Shift Cable Assembly
Courtesy of HYUNDAI MOTOR CO.
Install the center console, (refer to CONSOLE )
Install the center facia low panel (A).

Fig 5: Identifying Center Facia Low Panel
Courtesy of HYUNDAI MOTOR CO.
Install the five screw (A) to the center console.

Fig 6: Identifying Center Console Screw
Courtesy of HYUNDAI MOTOR CO.
Install the center console cover (A).

Fig 7: Identifying Center Console Cover
Courtesy of HYUNDAI MOTOR CO.
Install the shift lever knob (A).

Fig 8: Identifying Shift Lever Knob
Courtesy of HYUNDAI MOTOR CO.
Install the shift cable assembly to transaxle. (refer to INSTALLATION )

NOTE: Before completing installation, adjust the shift cable referring to ADJUSTMENT section.
