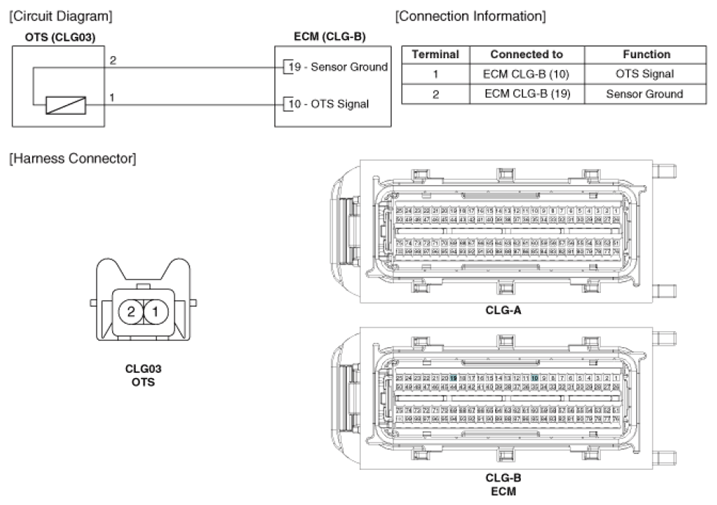

Home >> Hyundai >> 2010 >> Santa Fe SE, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.5L >> CVVT Oil Temperature Sensor (OTS) >> Schematic Diagrams >> Circuit Diagram
