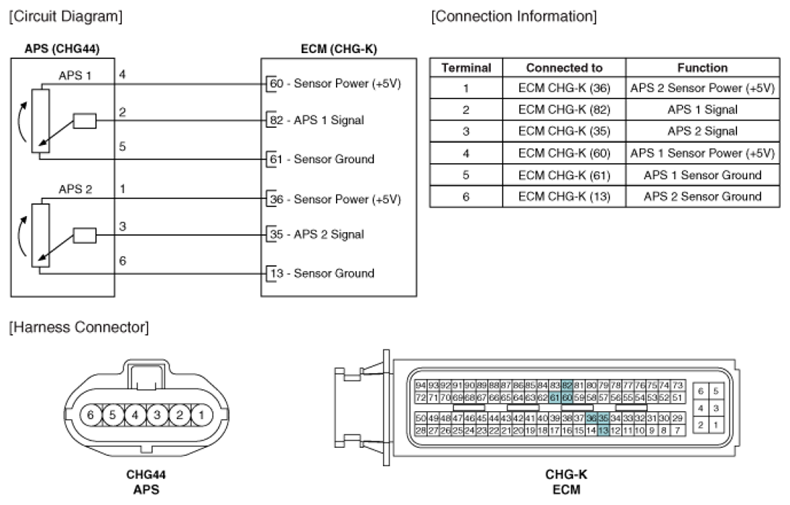

Home >> Hyundai >> 2010 >> Santa Fe GLS, 2.4 B, FWD, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.4L >> Accelerator Position Sensor (APS) >> Schematic Diagrams >> Circuit Diagram
