PODS Re-Zero Procedure

You should perform PODS Re-Zero procedure after service or replacement of any parts related to the passenger seat.

1. Ignition "OFF", connect scantool.

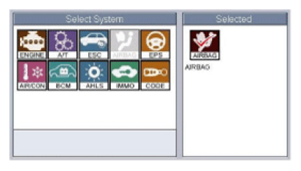

2. Ignition "ON" & Engine "OFF", select Airbag system and "PODS Reset" mode.
   Fig 1: Scantool Screen Display - PODS Re-Zero (1 Of 11)

   Courtesy of HYUNDAI MOTOR CO.
   Fig 2: Scantool Screen Display - PODS Re-Zero (2 Of 11)

   Courtesy of HYUNDAI MOTOR CO.
3. The scantool will show the two PODS RESET function steps.
   1. Erase PODS ECU diagnostic codes.
   2. PODS ECU initialization.
      Fig 3: Scantool Screen Display - PODS Re-Zero (3 Of 11)

      Courtesy of HYUNDAI MOTOR CO.
4. Press the OK button to erase the PODS related diagnostic codes.
   Fig 4: Scantool Screen Display - PODS Re-Zero (4 Of 11)

   Courtesy of HYUNDAI MOTOR CO.

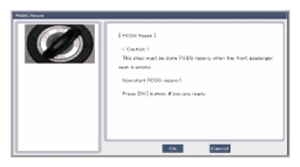

5. Press OK button to initialize the PODS.
   Fig 5: Scantool Screen Display - PODS Re-Zero (5 Of 11)

   Courtesy of HYUNDAI MOTOR CO.
   CAUTION: This step must be done PODS re-zero, when the front passenger seat is empty.
6. The PODS initialization procedure will be performed.
   Fig 6: Scantool Screen Display - PODS Re-Zero (6 Of 11)

   Courtesy of HYUNDAI MOTOR CO.

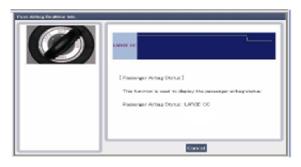

7. Check PODS situation with selecting "Pass. Airbag Realtime Info" after performing PODS Reset procedure.
   Fig 7: Scantool Screen Display - PODS Re-Zero (7 Of 11)

   Courtesy of HYUNDAI MOTOR CO.
8. Perform inspection with pressing OK button.
   Fig 8: Scantool Screen Display - PODS Re-Zero (8 Of 11)

   Courtesy of HYUNDAI MOTOR CO.
9. Finish the procedure with pressing cancel button if there is no problem after inspecting each status as follows:
   Fig 9: Scantool Screen Display - PODS Re-Zero (9 Of 11)

   Courtesy of HYUNDAI MOTOR CO.
   Fig 10: Scantool Screen Display - PODS Re-Zero (10 Of 11)

   Courtesy of HYUNDAI MOTOR CO.
   Fig 11: Scantool Screen Display - PODS Re-Zero (11 Of 11)

   Courtesy of HYUNDAI MOTOR CO.
