ACU Variant Coding

ACU Variant Coding (On-line type on Scantool)

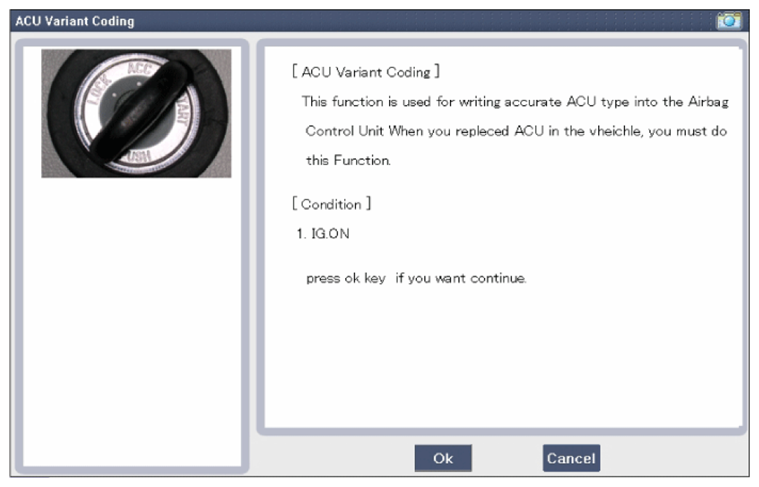

1. Initial ACU Variant Coding screen

  Fig 1: Scantool Screen Display - ACU Variant Coding - On-Line Type On Scantool (1 Of 7)
  Courtesy of HYUNDAI MOTOR CO.

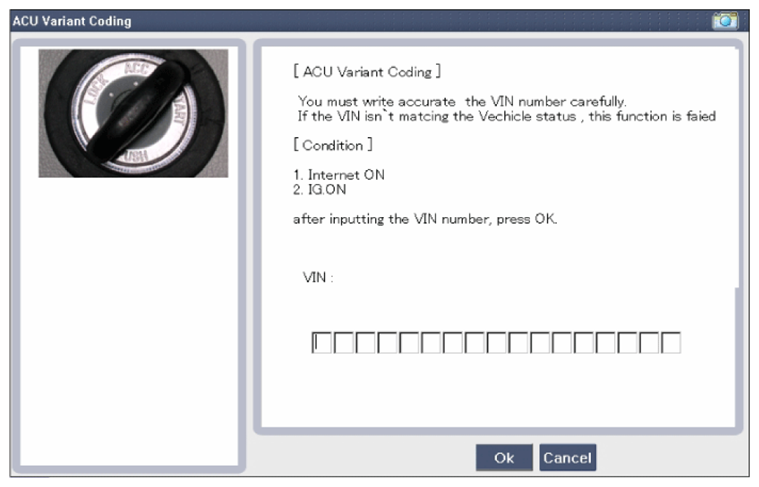

2. VIN Code entering screen

  Fig 2: Scantool Screen Display - ACU Variant Coding - On-Line Type On Scantool (2 Of 7)
  Courtesy of HYUNDAI MOTOR CO.

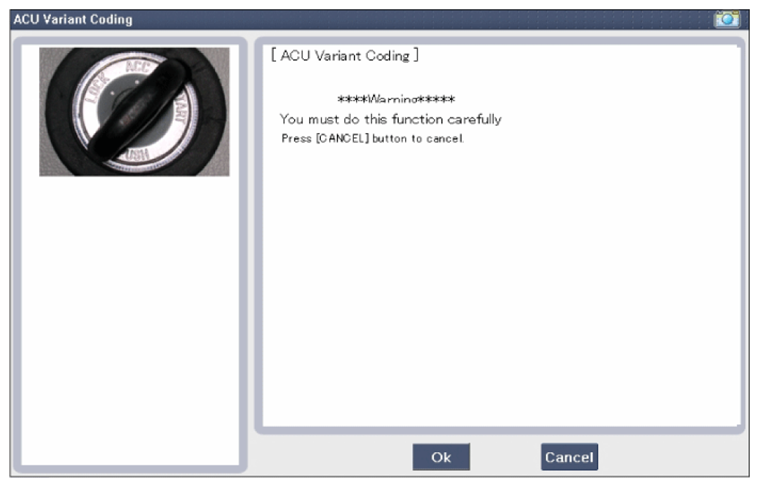

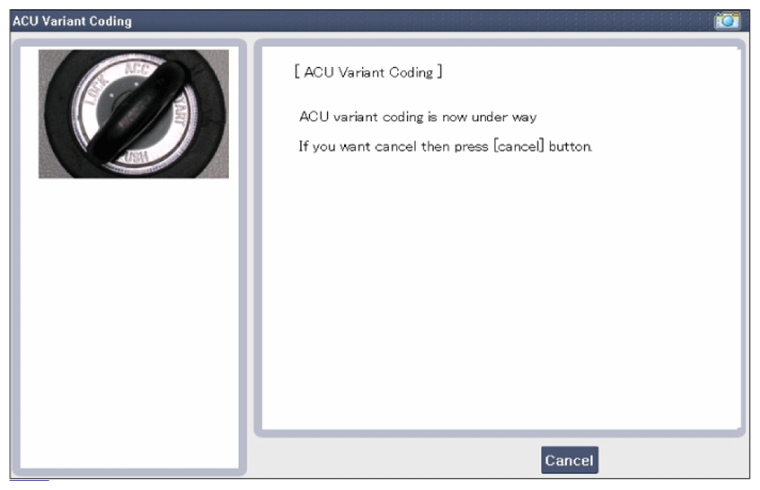

3. Variant coding's proceeding screen-1

  Fig 3: Scantool Screen Display - ACU Variant Coding - On-Line Type On Scantool (3 Of 7)
  Courtesy of HYUNDAI MOTOR CO.

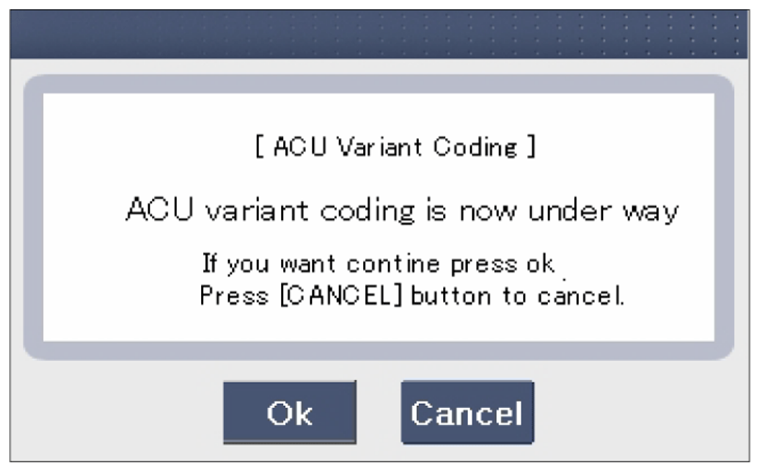

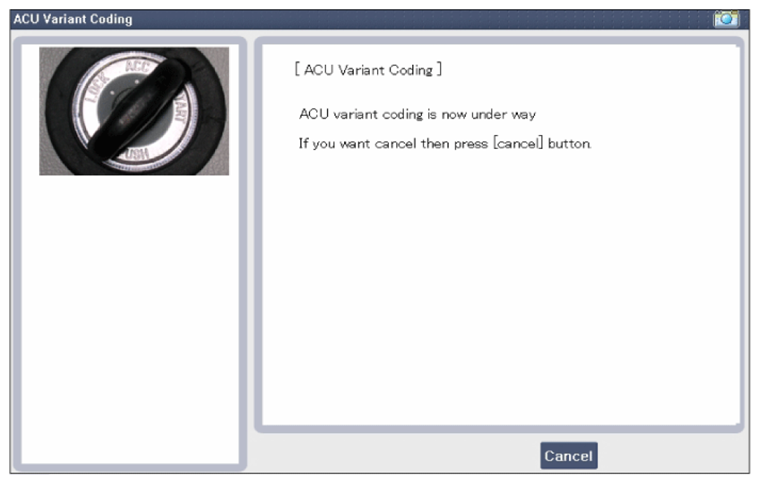

4. Variant coding's proceeding screen-2

  Fig 4: Scantool Screen Display - ACU Variant Coding - On-Line Type On Scantool (4 Of 7)
  Courtesy of HYUNDAI MOTOR CO.

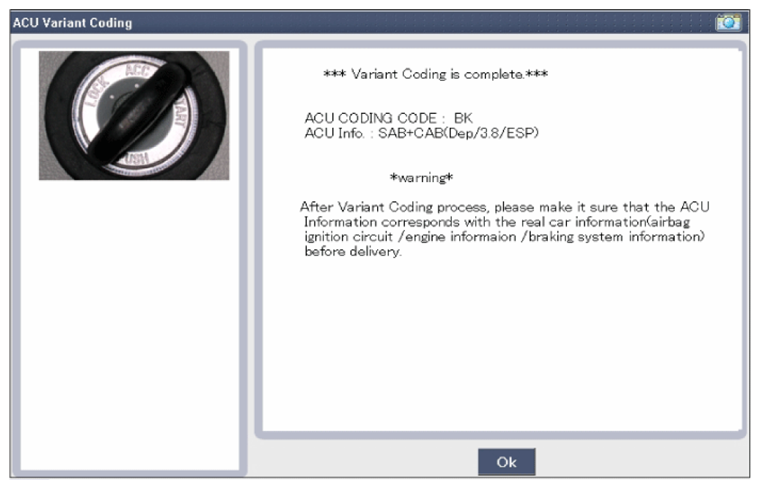

5. Variant coding is completed

  Fig 5: Scantool Screen Display - ACU Variant Coding - On-Line Type On Scantool (5 Of 7)
  Courtesy of HYUNDAI MOTOR CO.

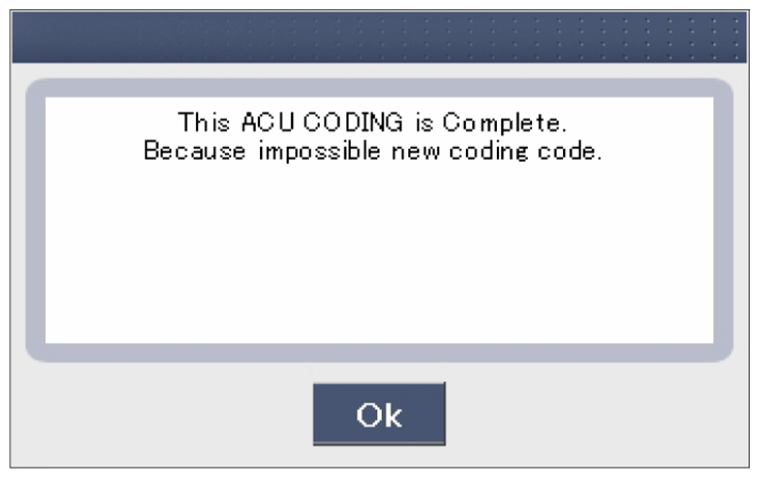

6. Screen of Retrying the Variant coding after finishing variant coding

  Fig 6: Scantool Screen Display - ACU Variant Coding - On-Line Type On Scantool (6 Of 7)
  Courtesy of HYUNDAI MOTOR CO.

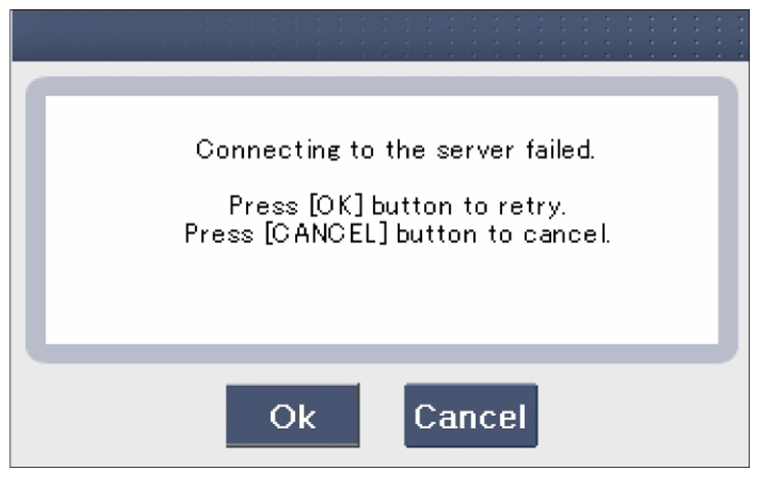

7. Screen of communication failure

  Fig 7: Scantool Screen Display - ACU Variant Coding - On-Line Type On Scantool (7 Of 7)
  Courtesy of HYUNDAI MOTOR CO.
ACU Variant Coding (Off-line type on Scantool-this can be used when not connecting to Internet)

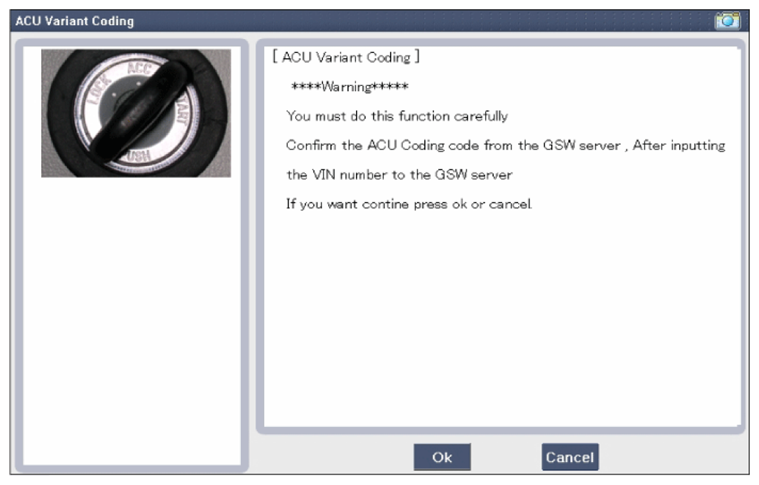

1. Initial ACU Variant Coding screen

  Fig 8: Scantool Screen Display - ACU Variant Coding - Off-Line Type On Scantool (1 Of 7)
  Courtesy of HYUNDAI MOTOR CO.

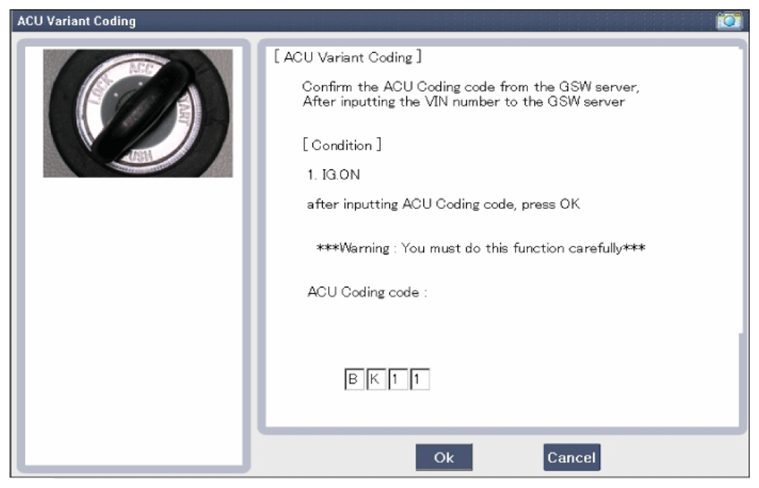

2. ACU CODING Code entering screen

  Fig 9: Scantool Screen Display - ACU Variant Coding - Off-Line Type On Scantool (2 Of 7)
  Courtesy of HYUNDAI MOTOR CO.
3. Screen of rechecking ACU CODING code's entering

  Fig 10: Scantool Screen Display - ACU Variant Coding - Off-Line Type On Scantool (3 Of 7)
  Courtesy of HYUNDAI MOTOR CO.
4. Variant coding's proceeding screen-1

  Fig 11: Scantool Screen Display - ACU Variant Coding - Off-Line Type On Scantool (4 Of 7)
  Courtesy of HYUNDAI MOTOR CO.
5. Variant coding's proceeding screen-2

  Fig 12: Scantool Screen Display - ACU Variant Coding - Off-Line Type On Scantool (5 Of 7)
  Courtesy of HYUNDAI MOTOR CO.
6. Variant coding is completed

  Fig 13: Scantool Screen Display - ACU Variant Coding - Off-Line Type On Scantool (6 Of 7)
  Courtesy of HYUNDAI MOTOR CO.

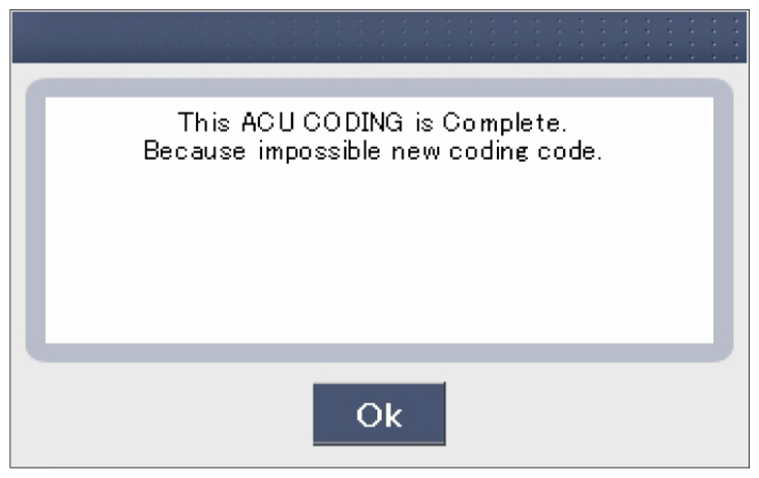

7. Screen of Retrying the Variant coding after finishing variant coding

  Fig 14: Scantool Screen Display - ACU Variant Coding - Off-Line Type On Scantool (7 Of 7)
  Courtesy of HYUNDAI MOTOR CO.
