Monitor Scantool Data
- Ignition "OFF", connect scantool.
- Ignition "ON" & Engine "OFF", select "Current Data" mode.

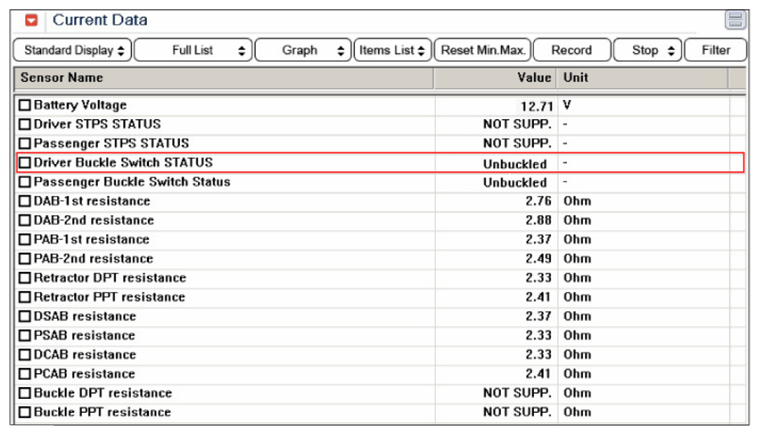

- Monitor the "Driver Buckle Switch status" parameter on the Scantool.
Specification: Driver Buckle Switch on: Buckled, Driver Buckle Switch off: Unbuckled
- Is parameter displayed within specifications?
YES
- Displaying nothing (no DTC) or DTC with label "H" (historical) shows that Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "WIRE HARNESS INSPECTION " procedure.
- Displaying nothing (no DTC) or DTC with label "H" (historical) shows that Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared.
