Repair procedures: Removal

CAUTION:
  • Use fender covers to avoid damaging painted surfaces.
  • To avoid damage, unplug the wiring connectors carefully while holding the connector portion.
NOTE:
  • Mark all wiring and hoses to avoid misconnection.
  • Inspection the timing belt before removing the cylinder head.
  • Turn the crankshaft pulley so that the No. 1 piston is at top dead center.
  1. Disconnect the terminal (A) from the battery (B).

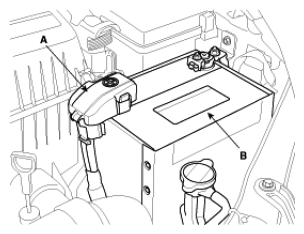

    Fig 1: Identifying Battery And Terminal
    G06862858Courtesy of HYUNDAI MOTOR CO.
  2. Remove the engine cover (A).

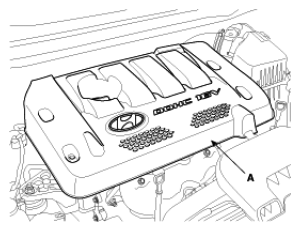

    Fig 2: Identifying Engine Cover
    G06862859Courtesy of HYUNDAI MOTOR CO.
  3. Drain the engine coolant.

    Remove the radiator cap to speed draining.

  4. Remove the intake air hose and air cleaner assembly.
    Fig 3: Identifying PCM Connectors, MAF Connectors, Breather Hose, Air Cleaner And Air Cleaner Hose
    G06862860Courtesy of HYUNDAI MOTOR CO.
    1. Disconnect the PCM connectors (A).
    2. Disconnect the MAF connector (B).
    3. Disconnect the breather hose (C) from air cleaner hose (D).
    4. Remove the intake air hose and air cleaner (E).
  5. Remove the upper radiator hose (A) and lower radiator hose (B).
    Fig 4: Identifying Upper Radiator Hose And Lower Radiator Hose
    G06862861Courtesy of HYUNDAI MOTOR CO.
  6. Remove the heater hoses (A).
    Fig 5: Identifying Heater Hoses
    G06862862Courtesy of HYUNDAI MOTOR CO.
  7. Remove the engine wire harness connectors (A) and wire harness clamps from the engine room fuse and relay junction box.
    Fig 6: Identifying Engine Wire Harness Connectors
    G06862863Courtesy of HYUNDAI MOTOR CO.
  8. Remove the fuel inlet from delivery pipe (A).

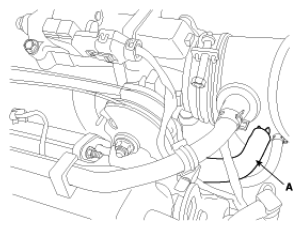

    Fig 7: Identifying Delivery Pipe
    G06862864Courtesy of HYUNDAI MOTOR CO.
  9. Remove the PCSV hose.
  10. Remove the brake booster vacuum hose.
  11. Remove the accelerator cable and the auto-cruise cable by loosening the locknut, then slip the cable end out of the throttle linkage.
  12. Remove the transaxle control cable.
  13. Remove the clip of the control cable.
  14. Remove the transaxle earth cable.
  15. Install the SST (09200-38001, 09200-1C000), the engine support fixture and the adapter, on the engine and transaxle assembly.
    Fig 8: Identifying SST (09200-38001) (09200-1C000 On Engine And Transaxle Assembly
    G06862865Courtesy of HYUNDAI MOTOR CO.
  16. Remove the engine mounting bracket (A) by removing the bolt (B) and nuts (C, D).

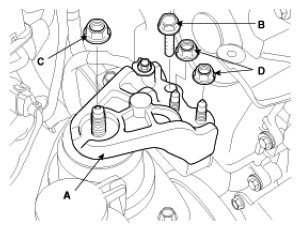

    Fig 9: Identifying Engine Mounting Bracket, Bolt And Nuts
    G06862866Courtesy of HYUNDAI MOTOR CO.
  17. Remove the transaxle mounting bracket.
  18. Remove the front tires.
  19. Remove the lower arm ball joint mounting bolts.
  20. Disconnect the tie-vod from the knuckle.
  21. Disconnect the stabilizer bar link from the strut.
  22. Disconnect the rear oxygen sensor connector (A).
    Fig 10: Identifying Rear Oxygen Sensor Connector
    G06862867Courtesy of HYUNDAI MOTOR CO.
  23. Remove the front muffler.
  24. Remove the steering u-joint mounting bolt (A).
    Fig 11: Identifying Steering U-Joint Mounting Bolt
    G06862868Courtesy of HYUNDAI MOTOR CO.
  25. Remove the sub frame bolts (A).
    Fig 12: Identifying Sub Frame Bolts (1 Of 2)
    G06862869Courtesy of HYUNDAI MOTOR CO.
    Fig 13: Identifying Sub Frame Bolts (2 Of 2)
    G06862870Courtesy of HYUNDAI MOTOR CO.
  26. Remove the engine support fixture and the adapter.
  27. Jack up the vehicle.
