Monitor Scantool Data

1. Specification : Increasing Gradually

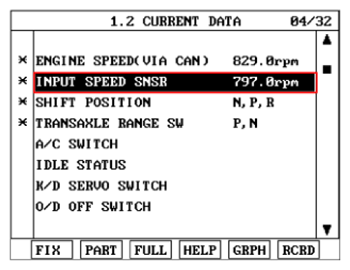

   Fig 1: Monitoring Input Speed Sensor Parameter On Scantool (P, N Range)

   Courtesy of HYUNDAI MOTOR CO.

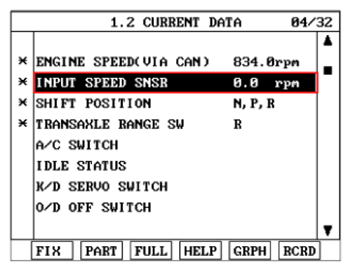

   Fig 2: Monitoring Input Speed Sensor Parameter On Scantool (R Range, Vehicle Speed = 0)

   Courtesy of HYUNDAI MOTOR CO.

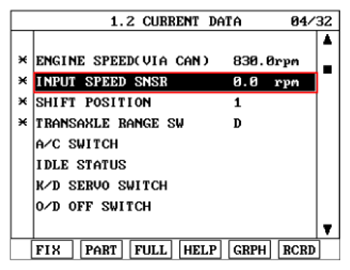

   Fig 3: Monitoring Input Speed Sensor Parameter On Scantool (D Range, Vehicle Speed = 0)

   Courtesy of HYUNDAI MOTOR CO.

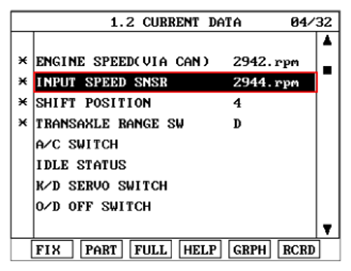

   Fig 4: Monitoring Input Speed Sensor Parameter On Scantool (High Speed Driving)

   Courtesy of HYUNDAI MOTOR CO.

YES

1. Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Throughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure

NO

1. Go to "W/HARNESS INSPECTION " procedure
