Hyundai
>>
2010
>>
Elantra GLS
>>
Repair and Diagnosis
>>
Engine Performance
>>
Tune-Up
>>
Ignition System
>>
Spark Plug
>>
Repair procedures
>>
Inspection
>>
Resistance Inspection
Resistance Inspection

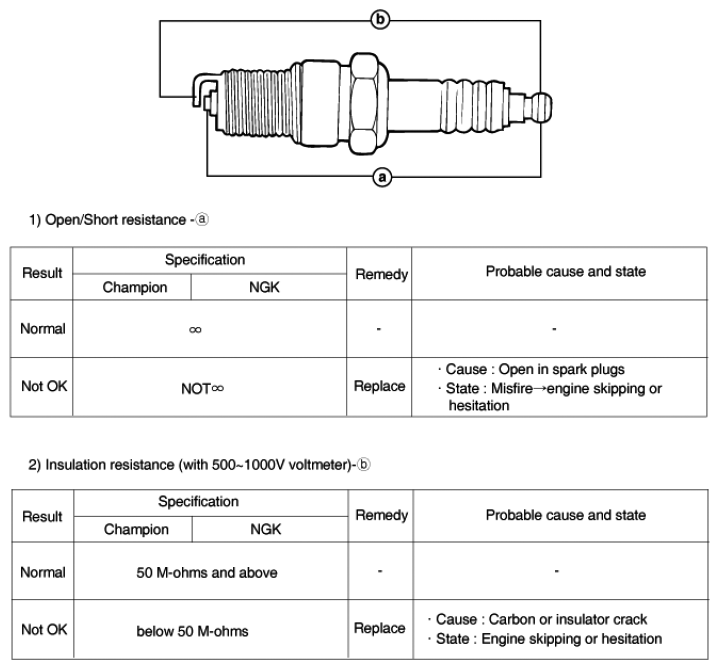

Fig 1: Measuring Resistance Between Spark Plug Terminals
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
