Schematic Diagram

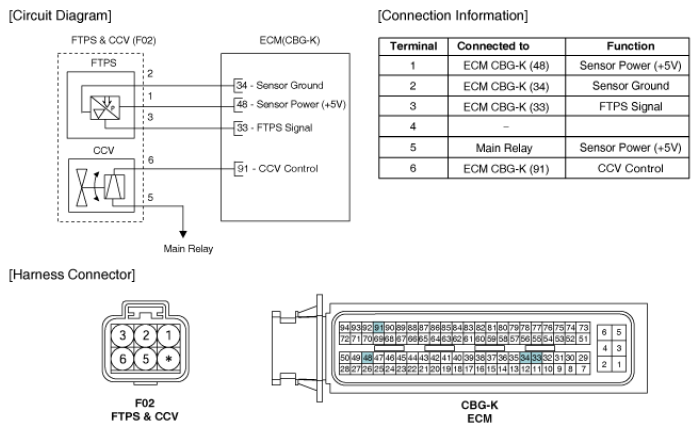

Fig 1: Fuel Tank Pressure Sensor Circuit Diagram

G06863186

Courtesy of HYUNDAI MOTOR CO.
