Repair procedures: Replacement

Disconnect the battery negative terminal (A) first, then the positive terminal (A).

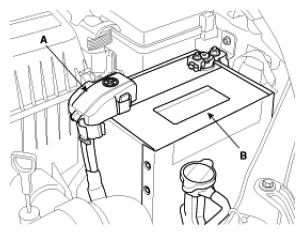

Fig 1: Identifying Battery Negative Terminal And Positive Terminal
Courtesy of HYUNDAI MOTOR CO.
Disconnect the alternator connector (A) and "B" terminal cable from the alternator. Loosen the chip (B).

Fig 2: Identifying Alternator Connector And Clip
Courtesy of HYUNDAI MOTOR CO.
Remove the adjusting bolt (A), mounting bolt (B), the alternator belt (C) and the alternator mounting bracket (D).
Pull out the through bolt, then remove the alternator (E).

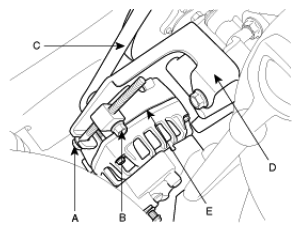

Fig 3: Identifying Adjusting Bolt, Mounting Bolt, Alternator Belt And Alternator Mounting Bracket
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
Adjust the alternator belt tension after installation.
