Home >> Hyundai >> 2010 >> Elantra GLS >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Front Axle Assembly >> Front Hub - Axle >> Components and Components Location >> Components

Components and Components Location: Components

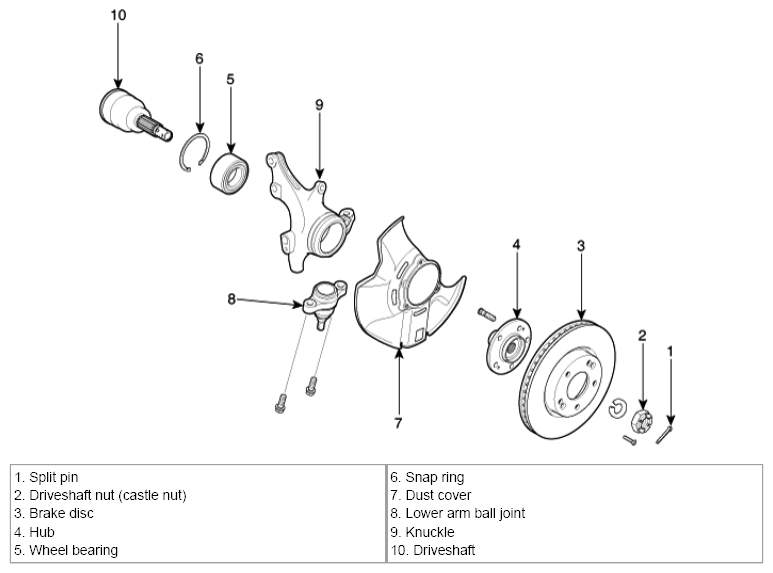

Fig 1: Identifying Front Hub - Axle Components

G06863442

Courtesy of HYUNDAI MOTOR CO.
