Repair procedures: Replacement: Removal

NOTE:
  • Put on gloves to protect your hands.
  • Use seat covers to avoid damaging any surfaces.
  1. Remove the following items:
    1. Inside rear view mirror.
    2. Sunvisors and holders, both sides, overhead console, Grab handles, both sides.
    3. Front pillar trim, both sides.
    4. Windshield wiper arms and cowl cover. (See FRONT WIPER MOTOR " ")

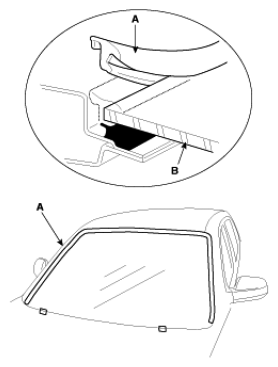

  2. Remove the molding (A) from the edge of the windshield (B). If necessary, cut the molding with a utility knife.
    Fig 1: Removing Windshield Molding Edge
    G06864172Courtesy of HYUNDAI MOTOR CO.
  3. Pull down the front portion of the headliner. Take care not to bend the headliner excessively, or you may crease or break it.
  4. Cut out the sealant using the sealant cutting tool [A (09861-31100)].
    Fig 2: Cutting Sealant Using SST
    G06864173Courtesy of HYUNDAI MOTOR CO.
  5. Remove the windshield (B) carefully using the glass holder [A (09861-31100)].
    Fig 3: Removing Windshield
    G06864174Courtesy of HYUNDAI MOTOR CO.
