Repair procedures (M5CF2): Installation

Install the cable assembly placing the select and shift lever in neutral position. (Refer to MANUAL TRANSAXLE'S INSTALLATION )
Install the retainer (A) and nuts (B).
Tightening torque:

8.8-13.7 Nm (0.9-1.4 kgf.m, 6.5-10.1 lb-ft)

NOTE: In case, install the crash pad and cowl cross bar. (Refer to CRASH PAD and HEATER UNIT )

Fig 1: Identifying Retainer And Nuts
Courtesy of HYUNDAI MOTOR CO.

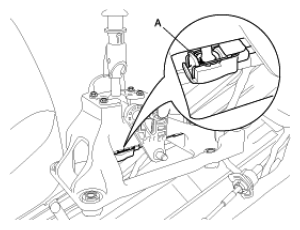

Install the clip (A) connecting the shift cable and the shift lever.

Fig 2: Identifying Shift Cable And Shift Lever Connecting Clip
Courtesy of HYUNDAI MOTOR CO.

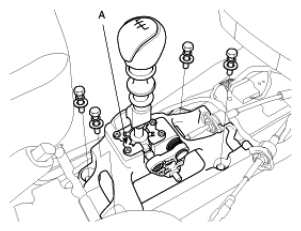

Install the shift lever assembly (A).
Tightening torque:

9~14 Nm (0.9~1.4 kgf.m, 6~9.5 lb-ft)

Fig 3: Identifying Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.

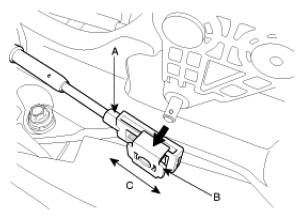

Move the slide clip (B) of guide member (A) in the direction as shown in the illustration.
NOTE: Adjust the slide clip fit into the select lever moving the slide clip in the direction.

Fig 4: Moving Slide Clip Of Guide Member
Courtesy of HYUNDAI MOTOR CO.
Install the guide member (A) of the select cable (B).

Fig 5: Identifying Guide Member And Select Cable
Courtesy of HYUNDAI MOTOR CO.
Adjust the slide clip (B) to fit it into the select lever pin (A) and install the snap pin (C).
NOTE: Insert the slide clip in the direction as shown in the illustration.

Fig 6: Adjusting Slide Clip
Courtesy of HYUNDAI MOTOR CO.
Install the center console (A).

Fig 7: Identifying Center Console
Courtesy of HYUNDAI MOTOR CO.
Install the upper cover (A) to the center console.

Fig 8: Identifying Center Console Upper Cover
Courtesy of HYUNDAI MOTOR CO.
