Repair procedures: Inspection

  1. Measure the output voltage between the terminal of the wheel speed sensor and the body ground.
    CAUTION: In order to protect the wheel speed sensor, when measuring output voltage, a 75Ω resistor must be used as shown in illustration.
    Fig 1: Measuring Output Voltage Between Wheel Speed Sensor Terminal And Body Ground
    G06864014Courtesy of HYUNDAI MOTOR CO.
  2. Compare the change of the output voltage of the wheel speed sensor to the normal change of the output voltage as shown in illustration .

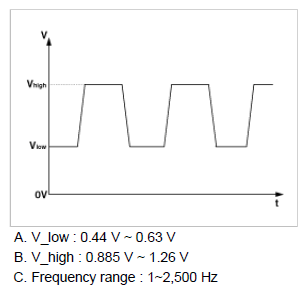

    Fig 2: Wheel Speed Sensor Output Voltage Graph
    G06864015Courtesy of HYUNDAI MOTOR CO.
