Repair procedures: Removal

Disconnect AFS (A) and breather hose (B).
Remove air cleaner upper cover (D) and intake hose (C).

Fig 1: Locating Air Cleaner Upper Cover And Intake Hose
Courtesy of HYUNDAI MOTOR CO.

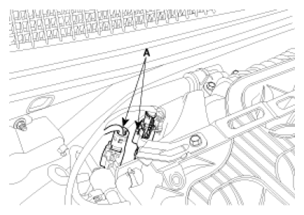

Disconnect RH oxygen sensor connector (A).

Fig 2: Locating RH Oxygen Sensor Connector
Courtesy of HYUNDAI MOTOR CO.
Disconnect RH injector connector (A) and ignition coil connector (B).

Fig 3: Locating RH Injector Connector And Ignition Coil Connector
Courtesy of HYUNDAI MOTOR CO.
Disconnect PCSV connector (A), MAP sensor connector (B) and PCSV hose.

Fig 4: Locating PCSV Connector, MAP Sensor Connector And PCSV Hose
Courtesy of HYUNDAI MOTOR CO.
Disconnect ETC connector (A) and knock sensor connector (B).

Fig 5: Locating ETC Connector And Knock Sensor Connector
Courtesy of HYUNDAI MOTOR CO.
Disconnect water hoses (B) from ETC.
Disconnect PCV (C) hose.

Fig 6: Locating Water Hoses And PCV Hose
Courtesy of HYUNDAI MOTOR CO.
Disconnect brake vacuum hose.
Remove surge tank stay (A).

Fig 7: Locating Surge Tank Stay
Courtesy of HYUNDAI MOTOR CO.
Remove connector bracket (A) from surge tank.

Fig 8: Locating Surge Tank Connector Bracket
Courtesy of HYUNDAI MOTOR CO.
Remove surge tank (A).

Fig 9: Locating Surge Tank
Courtesy of HYUNDAI MOTOR CO.
Disconnect breather Pipe assembly (A).

Fig 10: Locating Breather Pipe Assembly
Courtesy of HYUNDAI MOTOR CO.
Disconnect LH injector connector.
Remove intake manifold (A) and gasket.

Fig 11: Locating Intake Manifold And Gasket
Courtesy of HYUNDAI MOTOR CO.
