General Information: Specification

■ Output voltage of front height sensor.

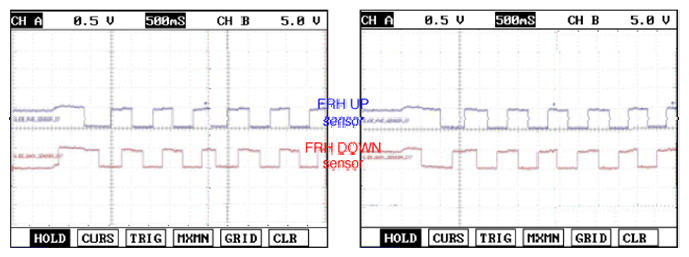

Fig 1: Signal Waveform - Front Height Sensor (UP And DOWN)

G06805696

Courtesy of HYUNDAI MOTOR CO.
